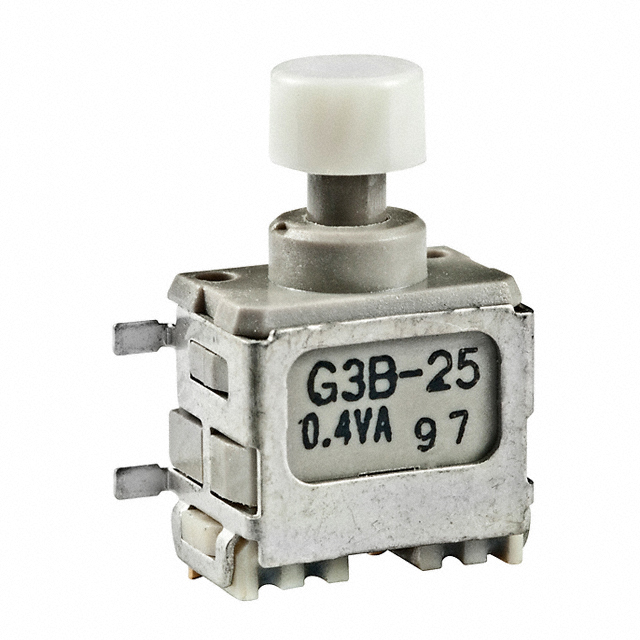

G3B25AH-XB

Active

NKK Switches

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

ULTRA-MINIATURE PROCESS SEALED SMT PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Features	Termination Style	Switch Function	Actuator Marking	Actuator Type	Voltage Rating - DC	Type	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Color - Actuator/Cap
NKK Switches G3B25AH-R	Surface Mount Right Angle	0.4 VA	28 V	Process Sealed	Gull Wing	On-Mom	No Marking	Round Plunger	28 V	Standard	50000 Cycles	-30 ░C	85 °C	DPDT
NKK Switches G3B25AH-XB	Surface Mount Right Angle	0.4 VA	28 V	Process Sealed	Gull Wing	On-Mom	No Marking	Button Round	28 V	Standard	50000 Cycles	-30 ░C	85 °C	DPDT	White
NKK Switches G3B25AH-XA	Surface Mount Right Angle	0.4 VA	28 V	Process Sealed	Gull Wing	On-Mom	No Marking	Button Round	28 V	Standard	50000 Cycles	-30 ░C	85 °C	DPDT	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Surface Mount, Right Angle
