345-008-523-107
ActiveEDAC Inc.

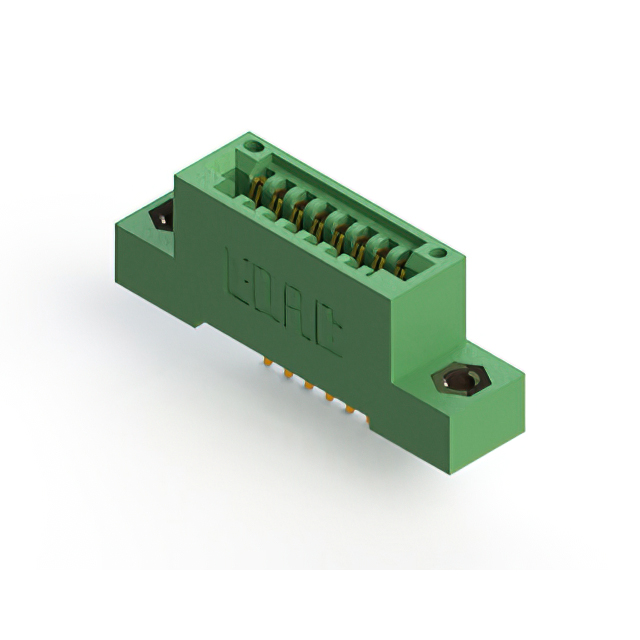

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 8 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-008-523-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 8 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-008-523-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-008 Series
...
| Part | Read Out | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Color | Gender | Termination | Contact Material | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Number of Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Features | Number of Positions | Termination Rows | Mounting Type | Pitch [x] | Pitch [x] | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 8 | 8 | 8 | Card Guides | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | ||||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | 1 | 8 | 8 | 8 | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 2.95 mm | 0.116 in | |||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1 | 8 | 8 | 8 | Card Guides | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | ||||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | 1 | 8 | 8 | 8 | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | |||||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Solder | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | 1 | 8 | 8 | 8 | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | |||||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Flush Mount Side Opening Unthreaded | 1 | 8 | 8 | 8 | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 3.25 mm | 0.128 " | |||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Solder Eyelet(s) | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 8 | 8 | 8 | Card Guides | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | ||||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 8 | 8 | 8 | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | 1 | 8 | 8 | 8 | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | |||||
EDAC Inc. | Single | Cantilever | -40 °C | 105 ░C | Polyester Thermoplastic | Green | Female | Solder | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | 1 | 8 | 8 | 8 | 8 | 1 | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-008 Series
8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
