TCLAMP2472S.TCT
ActiveSemtech Corporation
ESD PROTECTION DEVICE, 7.5 V, SOT-23, 6 PINS, 24 V, 150 W, TRANSCLAMP SERIES
Deep-Dive with AI
Search across all available documentation for this part.
TCLAMP2472S.TCT
ActiveSemtech Corporation
ESD PROTECTION DEVICE, 7.5 V, SOT-23, 6 PINS, 24 V, 150 W, TRANSCLAMP SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TCLAMP2472S.TCT |
|---|---|
| Applications | Telecom, Ethernet |
| Capacitance @ Frequency | 2 pF |
| Current - Peak Pulse (10/1000µs) | 20 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

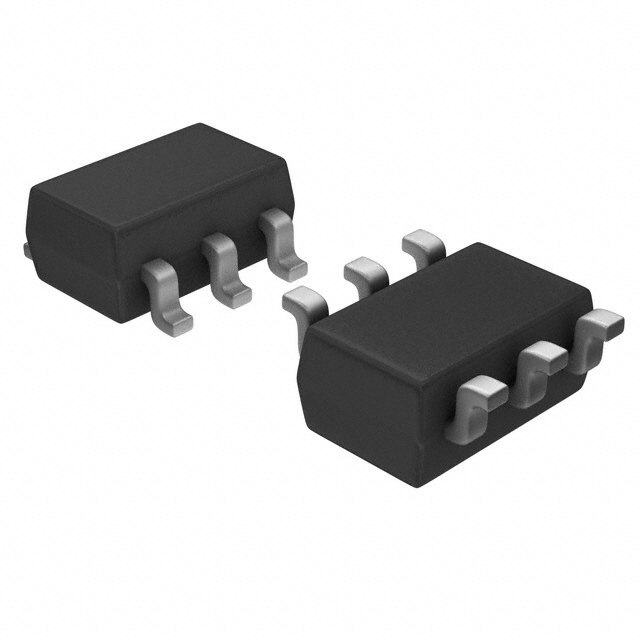

| Package / Case | SOT-23-6 |
| Power - Peak Pulse | 150 W |
| Power Line Protection | True |
| Supplier Device Package | SOT-23-6 |
| Type | Steering |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) [Min] | 27 V |
| Voltage - Clamping (Max) @ Ipp | 7.5 V |
| Voltage - Reverse Standoff (Typ) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.50 | |
| 10 | $ 0.95 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.50 | ||
| 10 | $ 0.95 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.45 | |||
| Tape & Reel (TR) | 3000 | $ 0.39 | ||
| 6000 | $ 0.37 | |||
| 9000 | $ 0.35 | |||
| 15000 | $ 0.35 | |||
Description
General part information
TCLAMP2472 Series
7.5V (Typ) Clamp 20A Ipp Tvs Diode Surface Mount SOT-23-6
