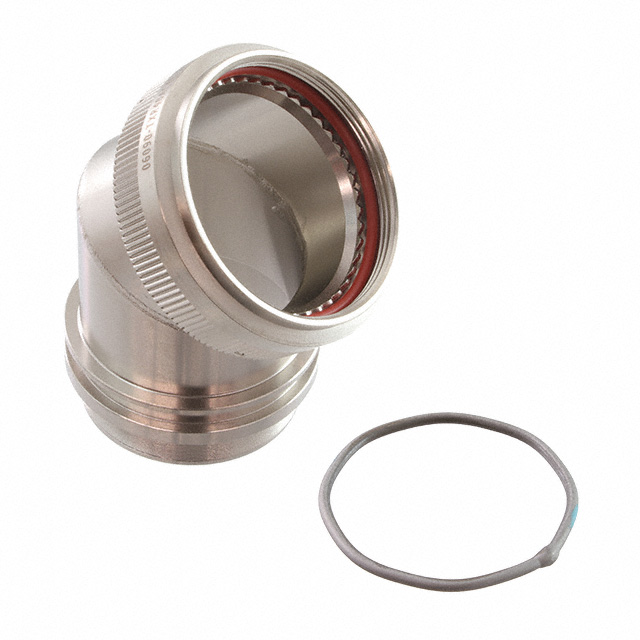

TXR40AC45-2420AIL
ActiveTE Connectivity Aerospace, Defense and Marine
CONN BACKSHELL ADPT SZ25 J SILV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TXR40AC45-2420AIL |
|---|---|
| Cable Exit | 45 ° |
| Color | Silver |
| Diameter - Outside [diameter] | 43.5 mm |
| Diameter - Outside [diameter] | 1.713 " |
| Features | Tinel Lock, Wire Holes |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV |
| Includes | 1 pcs, 1 pcs, 1 pcs, 1 pcs |
| Ingress Protection | Environment Resistant |
| Material | Aluminum Alloy |
| Plating | Electroless Nickel |
| Shell Size - Insert | J |
| Shell Size - Insert | 25 |
| Shielding | Shielded |
| Thread Size | M37x1 |
| Type | Backshell, Heat Shrink Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 510.31 | |
| 10 | $ 472.89 | |||
Description
General part information
TXR40AC45 Series
Silver Connector Backshell, Heat Shrink Adapter M37x1 25, J
