FF0126BBCAEA01

Active

NKK Switches

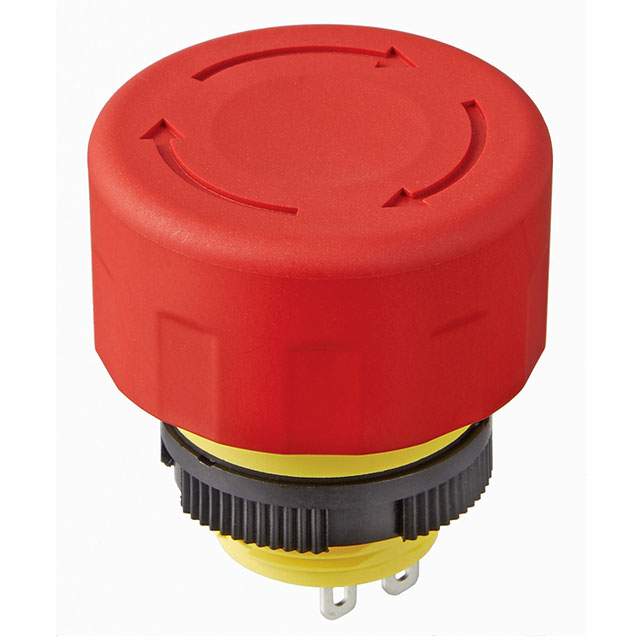

EMERGENCY STOP SWITCH, DPST-NC, ON-OFF, SOLDER LUG, 500 MA, 24 V

Search across all available documentation for this part.

Active

NKK Switches

EMERGENCY STOP SWITCH, DPST-NC, ON-OFF, SOLDER LUG, 500 MA, 24 V

Technical Specifications

Parameters and characteristics for this part

Specification	FF0126BBCAEA01

Circuit	DPST-NC
Current Rating (Amps)	500 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Reset Operation	Twist
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - DC	24 V

Part	Switch Function	Mounting Type	Ingress Protection	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Current Rating (Amps)	Reset Operation	Voltage Rating - DC	Panel Cutout Dimensions [diameter]
NKK Switches FF0126BBCEEA01	On-Off	Panel Mount Front	IP65 - Dust Tight Water Resistant	DPST-NC	-25 °C	60 °C	Solder Lug	500 mA	Twist	24 V	16.2 mm
NKK Switches FF0126BBCAEA01	On-Off	Panel Mount Front	IP65 - Dust Tight Water Resistant	DPST-NC	-25 °C	60 °C	Solder Lug	500 mA	Twist	24 V	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EMERGENCY STOP SWITCH, DPST-NC, ON-OFF, SOLDER LUG, 500 MA, 24 V
