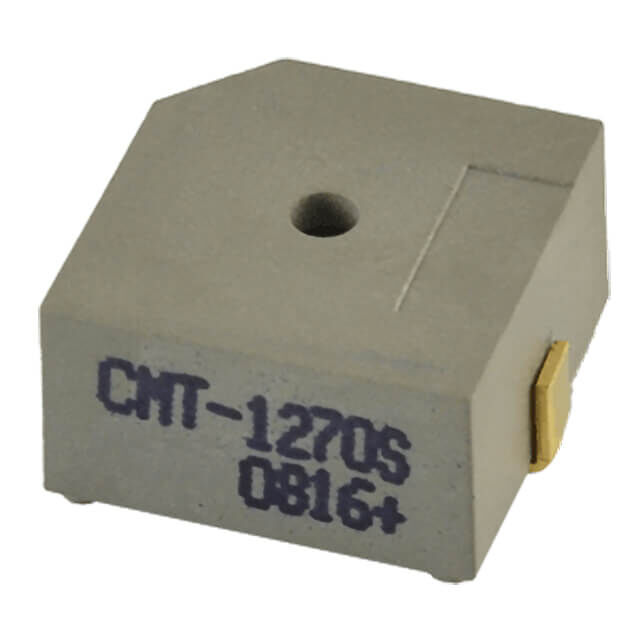

CMT-1270S-SMT-TR
ActiveCUI Devices
AUDIO BUZZER MAGNETIC 1.2VO-P 2VO-P 60MA 1.5VO-P 80DB SURFACE MOUNT SOLDER PAD T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMT-1270S-SMT-TR
ActiveCUI Devices
AUDIO BUZZER MAGNETIC 1.2VO-P 2VO-P 60MA 1.5VO-P 80DB SURFACE MOUNT SOLDER PAD T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT-1270S-SMT-TR |
|---|---|
| Current - Supply | 60 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.4 kHz |
| Height - Seated (Max) [Max] [z] | 0.295 in |
| Height - Seated (Max) [Max] [z] | 7.5 mm |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Ratings | Washable |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [x] | 0.504 " |
| Size / Dimension [y] | 12.8 mm |
| Size / Dimension [y] | 0.504 " |
| Sound Pressure Level (SPL) | 83 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 1.5 VDC |
| Voltage Range [Max] | 2 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.02 | |
| 1 | $ 2.02 | |||
| 10 | $ 1.67 | |||
| 10 | $ 1.67 | |||
| Digi-Reel® | 1 | $ 2.02 | ||
| 1 | $ 2.02 | |||
| 10 | $ 1.67 | |||
| 10 | $ 1.67 | |||
| Tape & Reel (TR) | 1350 | $ 1.06 | ||
| 1350 | $ 1.06 | |||
Description
General part information
CMT-1270 Series
Buzzers Transducer, Externally Driven Magnetic 1.5 V 60mA 2.4kHz 83dB @ 1.5V, 10cm Surface Mount Solder Pads
