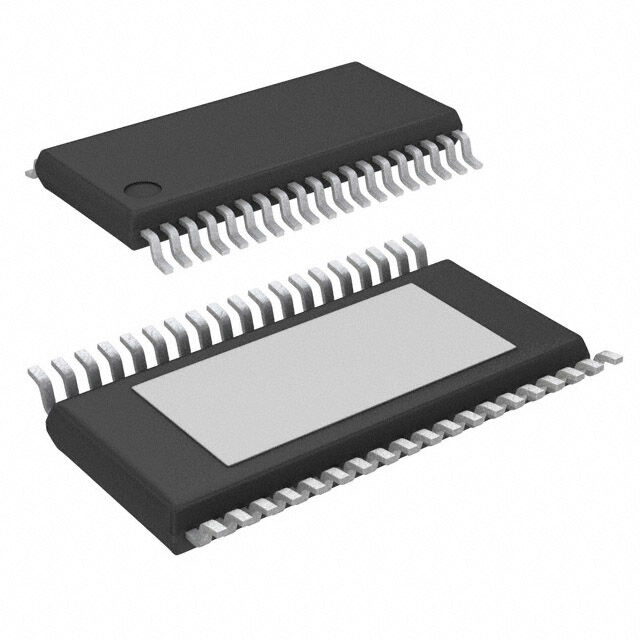

ARG82801KLVATR-1

Active

Allegro MicroSystems

PMIC FOR SAFETY RELATED SYSTEMS

Search across all available documentation for this part.

Active

Allegro MicroSystems

PMIC FOR SAFETY RELATED SYSTEMS

Technical Specifications

Parameters and characteristics for this part

Specification	ARG82801KLVATR-1

Frequency - Switching	2.2 MHz
Grade	Automotive
Mounting Type	Surface Mount
Number of Outputs	9
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	38-TFSOP
Qualification	AEC-Q100
Supplier Device Package	38-eTSSOP
Topology	Linear (LDO) (4), Step-Down/Step-Up (Buck/Boost) (1), Step-Down (Buck) (1)
Voltage - Supply [Max]	36 V
Voltage - Supply [Min]	3.8 V
Voltage/Current - Output 1 [custom]	1.2 A
Voltage/Current - Output 1 [custom]	5.35 V
Voltage/Current - Output 2	350 mA, 3.3 V, 5 V
Voltage/Current - Output 3	115 mA, 5 V
w/LED Driver	False
w/Sequencer	False
w/Supervisor	False

Part	Regulator Topology	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Main Purpose	Utilized IC / Part	w/LED Driver	Topology	Number of Outputs	Package / Case	Voltage/Current - Output 3	Voltage/Current - Output 2	Mounting Type	w/Sequencer	Qualification	Voltage/Current - Output 1 [custom]	Voltage/Current - Output 1 [custom]	Grade	Voltage - Supply [Min]	Voltage - Supply [Max]	w/Supervisor	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching	Supplier Device Package
Allegro MicroSystems APEK82801KLV-01-T	Buck-Boost	Board(s)	Fully Populated	Non-Isolated	5	DC/DC Step Up or Down with LDO	ARG82801
Allegro MicroSystems ARG82801KLVATR-1									Linear (LDO) (4) Step-Down (Buck) (1) Step-Down/Step-Up (Buck/Boost) (1)	9	38-TFSOP	5 V 115 mA	3.3 V 5 V 350 mA	Surface Mount		AEC-Q100	1.2 A	5.35 V	Automotive	3.8 V	36 V		150 °C	-40 °C	2.2 MHz	38-eTSSOP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	12000	$ 3.74

General part information

PMIC - Voltage Regulators - Linear Switching 9 Output Step-Down (Buck) (1) or Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (4) 2.2MHz 38-eTSSOP
