PH-MVF-5380

Active

Adam Tech

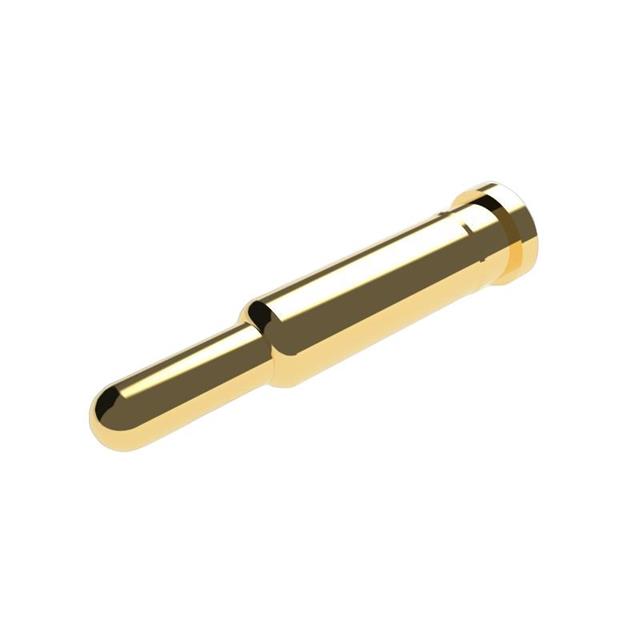

POGO PIN SPRING PROBE CONNECTOR ROHS

Search across all available documentation for this part.

Active

Adam Tech

POGO PIN SPRING PROBE CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	PH-MVF-5380

Contact Finish	Gold
Contact Material	Brass
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	1000000
Maximum Working Height [Max]	0.315 "
Maximum Working Height [Max]	8 mm
Minimum Working Height [Min]	0.26 "
Minimum Working Height [Min]	6.6 mm
Mounting Type	Surface Mount
Operating Force - Initial	70 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	1.8 mm
Pad Layout Dimension [diameter]	0.071 in
Plunger Size [diameter]	1 mm
Plunger Size [diameter]	0.039 in
Recommended Working Height	7 mm
Recommended Working Height	0.276 in

Part	Contact Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Maximum Working Height [Max]	Maximum Working Height [Max]	Operating Force - Initial	Current Rating (Amps)	Minimum Working Height [Min]	Minimum Working Height [Min]	Mounting Type	Contact Finish	Recommended Working Height [z]	Recommended Working Height [z]	Contact Type	Plunger Size [diameter]	Plunger Size [diameter]	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Recommended Working Height	Recommended Working Height
Adam Tech PH-MVF-5365	Brass	1000000	-55 °C	125 °C	0.256 in	6.5 mm	70 gf	3 A	0.201 in	5.1 mm	Surface Mount	Gold	5.5 mm	0.217 in	Sleeve & Plunger (Pogo Pins)	1 mm	0.039 in	1.8 mm	0.071 in
Adam Tech PH-MVF-5380	Brass	1000000	-55 °C	125 °C	0.315 "	8 mm	70 gf	3 A	0.26 "	6.6 mm	Surface Mount	Gold			Sleeve & Plunger (Pogo Pins)	1 mm	0.039 in	1.8 mm	0.071 in	7 mm	0.276 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Spring Surface Mount
