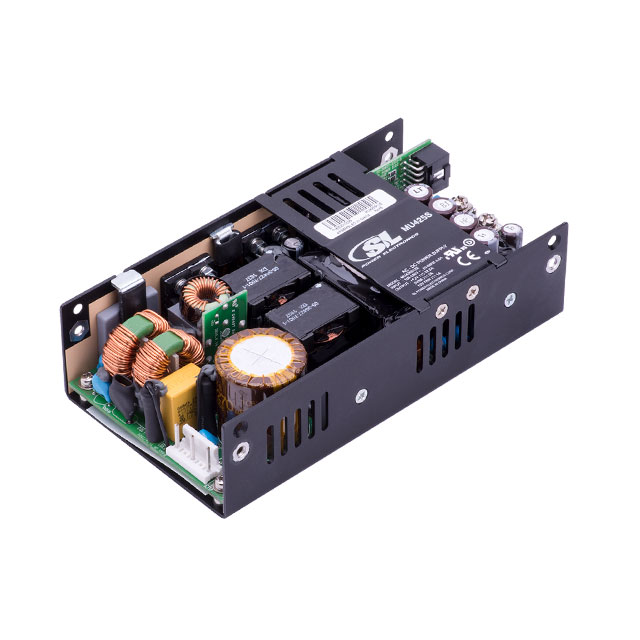

MU425S12E

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 22A 425W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 22A 425W

Technical Specifications

Parameters and characteristics for this part

Specification	MU425S12E

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	22 A
Efficiency	88 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	425 W, 300 W
Size / Dimension [x]	157.4 mm
Size / Dimension [x]	6.2 in
Size / Dimension [y]	3.3 in
Size / Dimension [y]	83.8 mm
Size / Dimension [z]	41.1 mm
Size / Dimension [z]	1.62 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

Part	Efficiency	Type	Applications	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Mounting Type	Features	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Minimum Load Required
SL POWER / Advanced Energy MU425S12E	88 %	Open Frame	ITE (Commercial)	CE	-10 °C	70 °C	3.3 in	157.4 mm	6.2 in	41.1 mm	83.8 mm	1.62 in	1	Chassis Mount	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	90 VAC	264 VAC	22 A	1.5 kV	12 V	300 W 425 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
