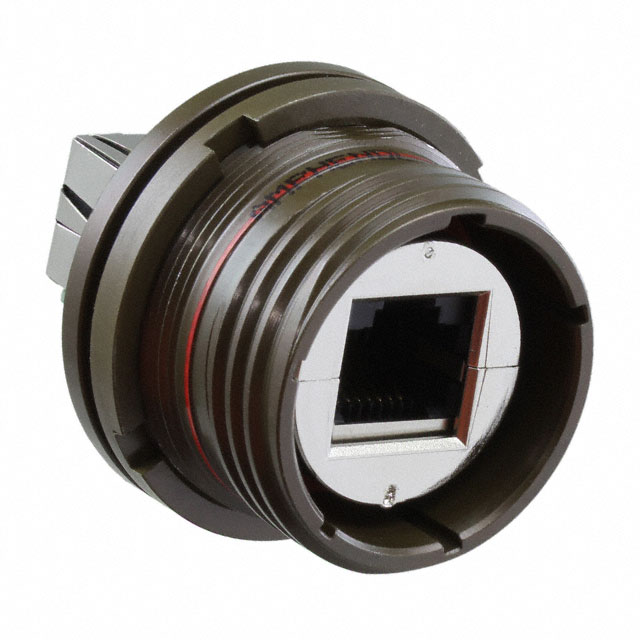

RJFTV67A1GF312

Active

Amphenol Socapex

MODULAR JACK 8P8C REDUCED FLANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJFTV67A1GF312

Active

Amphenol Socapex

MODULAR JACK 8P8C REDUCED FLANGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJFTV67A1GF312

Connector Type	Jack
Ingress Protection	IP68 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat6
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

RJFTV67 Series

Part	Ingress Protection	Mounting Feature	Convert To (Adapter End)	Convert From (Adapter End)	Shell Material, Finish	Type	Mounting Type	Ratings	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Features	Orientation	Connector Type	LED Color	Number of Rows	Number of Ports	Termination	Tab Direction	Number of Positions/Contacts
Amphenol Socapex RJFTV67SA1N	IP68 - Dust Tight Waterproof	Front Side Nut	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Aluminum Nickel Plated	Coupler	Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C
Amphenol Socapex RJFTV67SAPEM1G	IP68 - Dust Tight Waterproof	Front Side Nut	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Aluminum Olive Drab Cadmium Plated	Coupler	Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C	Backshell
Amphenol Socapex RJFTV67APEM1G	IP68 - Dust Tight Waterproof	Front Side Nut	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Aluminum Olive Drab Cadmium Plated	Coupler	Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C	Backshell
Amphenol Socapex RJFTV67SAPEM1N	IP68 - Dust Tight Waterproof	Front Side Nut	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Aluminum Nickel Plated	Coupler	Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C	Backshell
Amphenol Socapex RJFTV67SAPE1G	IP68 - Dust Tight Waterproof	Front Side Nut	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Aluminum Olive Drab Cadmium Plated	Coupler	Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C	Backshell
Amphenol Socapex RJFTV67A1ZN			8p8c (RJ45) Jack	Jack 8p8c (RJ45)		Coupler				85 °C	-40 °C
Amphenol Socapex RJFTV67APE1G	IP68 - Dust Tight Waterproof	Front Side Nut	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Aluminum Olive Drab Cadmium Plated	Coupler	Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C	Backshell
Amphenol Socapex RJFTV67APE1N	IP68 - Dust Tight Waterproof	Front Side Nut	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Aluminum Nickel Plated	Coupler	Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C	Backshell
Amphenol Socapex RJFTV67A1G	IP68 - Dust Tight Waterproof	Front Side Nut	8p8c (RJ45) Jack	Jack 8p8c (RJ45)	Aluminum Olive Drab Cadmium Plated	Coupler	Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C
Amphenol Socapex RJFTV67A1GF312	IP68 - Dust Tight Waterproof						Bulkhead Panel Mount	Cat6	Shielded	85 °C	-40 °C		Straight	Jack	Does Not Contain LED	1	1	Solder	User Selectable	8p8c (RJ45 Ethernet)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 128.47
		10	$ 117.89
		25	$ 113.35
		50	$ 109.57

Description

General part information

RJFTV67 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat6
