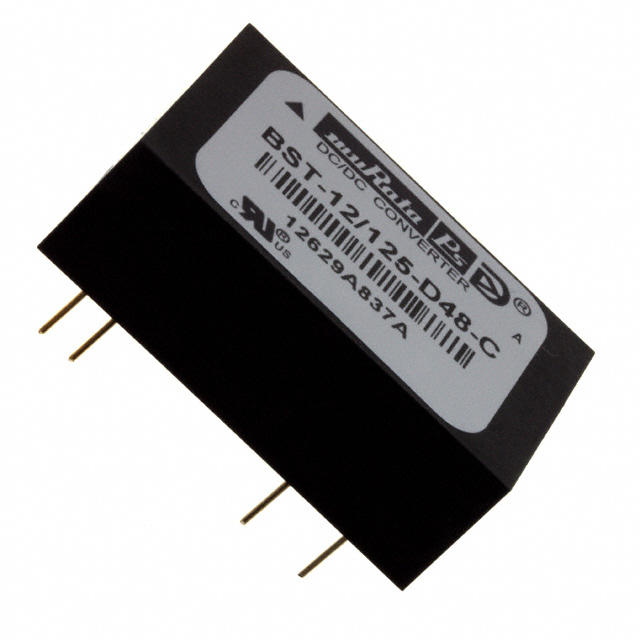

BST-12/125-D48-C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 3 W, 2 OUTPUT, 12 V, 125 MA
Deep-Dive with AI
Search across all available documentation for this part.
BST-12/125-D48-C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 3 W, 2 OUTPUT, 12 V, 125 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BST-12/125-D48-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 125 mA |
| Current - Output (Max) | 125 mA |
| Efficiency | 77 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.45 " |
| Size / Dimension [z] | 11.4 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BST-12 Series
Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 72V Input
