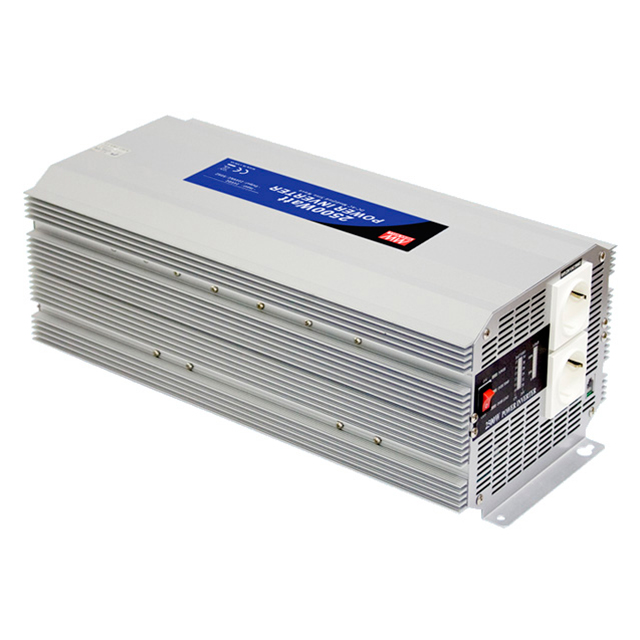

A301-2K5-B2
ActiveMEAN WELL USA Inc.
INVERTER 12VDC 2.5KW 2 OUTLET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A301-2K5-B2
ActiveMEAN WELL USA Inc.
INVERTER 12VDC 2.5KW 2 OUTLET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A301-2K5-B2 |
|---|---|
| AC Outlets | 2 |
| Connector - AC Output | NEMA 5-15R |
| Connector - Voltage Input | Terminals |
| Power - Output Continuous | 2.5 kW |
| Power - Output Surge | 5 kW |
| Region Utilized | North America |
| Remote Capability | True |
| Size [x] | 16.93 " |
| Size [x] | 430 mm |
| Size [y] | 8.27 in |
| Size [y] | 210 mm |
| Size [z] | 159 mm |
| Size [z] | 6.26 " |
| Voltage - Input | 12 VDC |
| Voltage - Output | 110 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A301-2K5 Series
12VDC Voltage Input 2.5 kW Power Output Continuous Inverter 2 AC Outlets NEMA 5-15R North America
