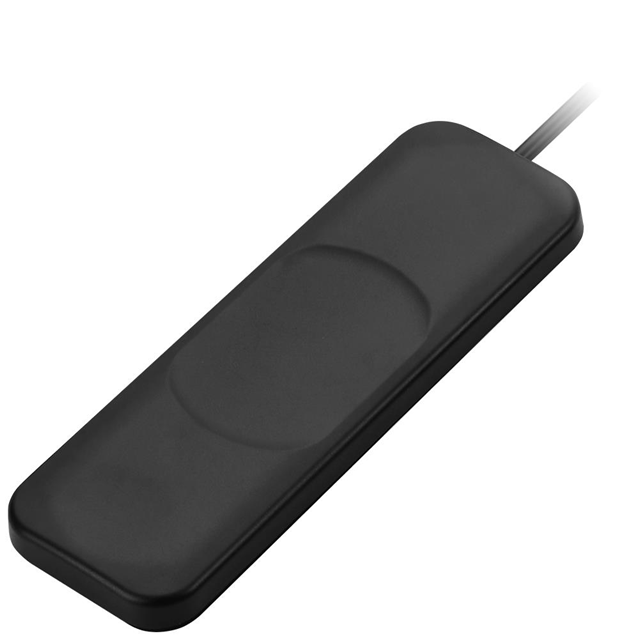

GSA.8845.A.105111

Active

TAOGLAS

RF ANTENNA, 450MHZ TO 5.85GHZ, CELLULAR / 4G / 3G / 2G / LTE / ISM / WIFI, 2.42DBI, 50 OHM, LINEAR

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 450MHZ TO 5.85GHZ, CELLULAR / 4G / 3G / 2G / LTE / ISM / WIFI, 2.42DBI, 50 OHM, LINEAR

Technical Specifications

Parameters and characteristics for this part

Specification	GSA.8845.A.105111

Antenna Type	Flat Bar
Applications	WLAN, UMTS, GPS, PCS, LTE, GSM, DCS, CDMA
Features	Cable - 1m
Frequency (Center/Band)	1.795 GHz, 460 MHz, 920 MHz, 5.375 GHz, 1.92 GHz, 2.045 GHz, 2.495 GHz, 859 MHz, 752 MHz
Frequency Group	Wide Band
Frequency Range [Max]	470 MHz, 5.85 GHz, 2.7 GHz, 960 MHz
Frequency Range [Min]	450 MHz, 698 MHz, 1.71 GHz, 4.9 GHz
Gain	2.31 dBi, 2.56 dBi, -23 dBi, 1.93 dBi, 3.85 dBi, 3.55 dBi, 5.32 dBi, 2.43 dBi
Height (Max)	13.6 mm
Height (Max) [Max]	0.535 in
Ingress Protection	IP65
Mounting Type	Adhesive
Number of Bands	9
Power - Max [Max]	5 W
RF Family/Standard	Navigation, WiFi, Cellular

Part	RF Family/Standard	Applications	Ingress Protection	Power - Max [Max]	Mounting Type	Features	Frequency (Center/Band)	Antenna Type	Gain	Number of Bands	Height (Max) [Max]	Height (Max)	Frequency Group	Frequency Range [Max]	Frequency Range [Min]
TAOGLAS GSA.8845.A.105111	Cellular Navigation WiFi	CDMA DCS GPS GSM LTE PCS UMTS WLAN	IP65	5 W	Adhesive	Cable - 1m	1.795 GHz 1.92 GHz 2.045 GHz 2.495 GHz 5.375 GHz 460 MHz 752 MHz 859 MHz 920 MHz	Flat Bar	-23 dBi 1.93 dBi 2.31 dBi 2.43 dBi 2.56 dBi 3.55 dBi 3.85 dBi 5.32 dBi	9	0.535 in	13.6 mm	Wide Band	2.7 GHz 5.85 GHz 470 MHz 960 MHz	1.71 GHz 4.9 GHz 450 MHz 698 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA CDMA, DCS, GPS, GSM, LTE, PCS, UMTS, WLAN Flat Bar SMA Male Adhesive
