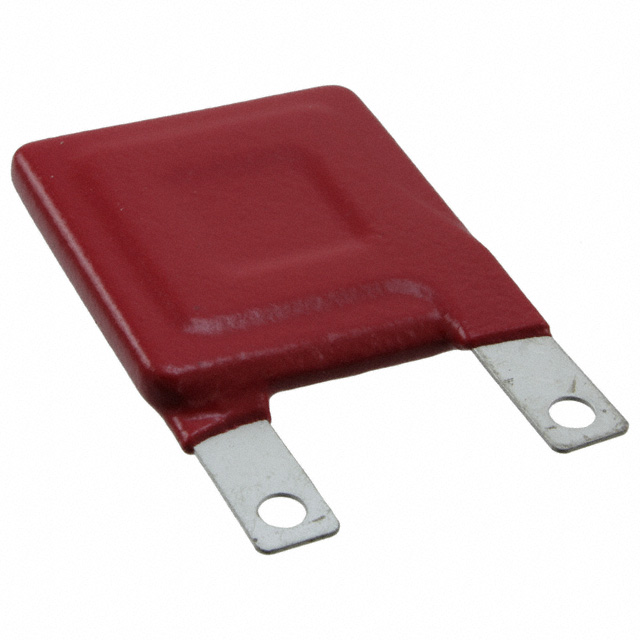

V661HF34
ActiveVARISTOR, 850V, 900J, CHASSIS MOUNT, HALOGEN FREE AND ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
V661HF34
ActiveVARISTOR, 850V, 900J, CHASSIS MOUNT, HALOGEN FREE AND ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V661HF34 |
|---|---|
| Capacitance @ Frequency | 2000 pF |
| Current - Surge | 40 kA |
| Energy | 900 J |
| Maximum AC Volts [Max] | 660 V |
| Maximum DC Volts [Max] | 850 V |
| Mounting Type | Bolt Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -55 C |
| Package / Case | Tabs, Square |
| Package / Case | 34 mm |
| Varistor Voltage (Max) [Max] | 1.155 kV |
| Varistor Voltage (Min) [Min] | 945 V |
| Varistor Voltage (Typ) | 1.05 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
V661HF34 Series
The HB34, HF34, and HG34 Series of transient surge suppressors are industrial high-energy Metal-Oxide Varistors (MOVs). They are designed to provide surge suppression in the AC mains outdoor and service entrance environment (distribution panels) of buildings. Applications also include industrial heavy motors, controls, and power supplies such as used in the oil-drilling, mining, and transportation fields, including HVAC and motor/generator
