SMA3109-TL-E
ActiveON Semiconductor
RF AMPLIFIER, 3.6GHZ, -40 TO 85DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
SMA3109-TL-E
ActiveON Semiconductor
RF AMPLIFIER, 3.6GHZ, -40 TO 85DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA3109-TL-E |
|---|---|
| Current - Supply | 16 mA |
| Frequency [Max] | 2.2 GHz |
| Frequency [Min] | 0 Hz |
| Gain | 24 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 4.3 dB |
| P1dB | 4.2 dBm |

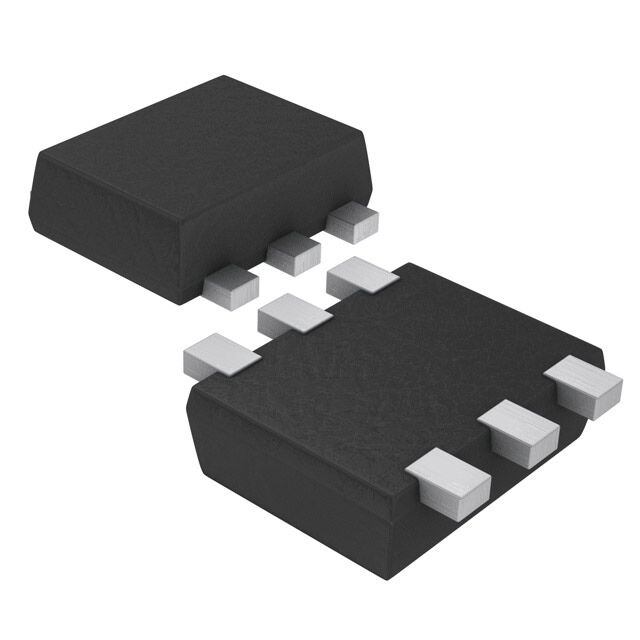

| Package / Case | 6-SMD, Flat Leads |
| RF Type | General Purpose |
| Supplier Device Package | 6-MCPH |
| Test Frequency | 2.2 GHz |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
| 6000 | $ 0.15 | |||
| 15000 | $ 0.14 | |||
| 30000 | $ 0.14 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.56 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.36 | |||
| 250 | $ 0.34 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.30 | |||
| ON Semiconductor | N/A | 1 | $ 0.15 | |
Description
General part information
SMA3109 Series
SMA3109 is RF MMIC, Amplifier, 3 V, 16 mA, 0.1 to 3.6 GHz.
