D4E133-DL01-H9

Active

ebm-papst Inc.

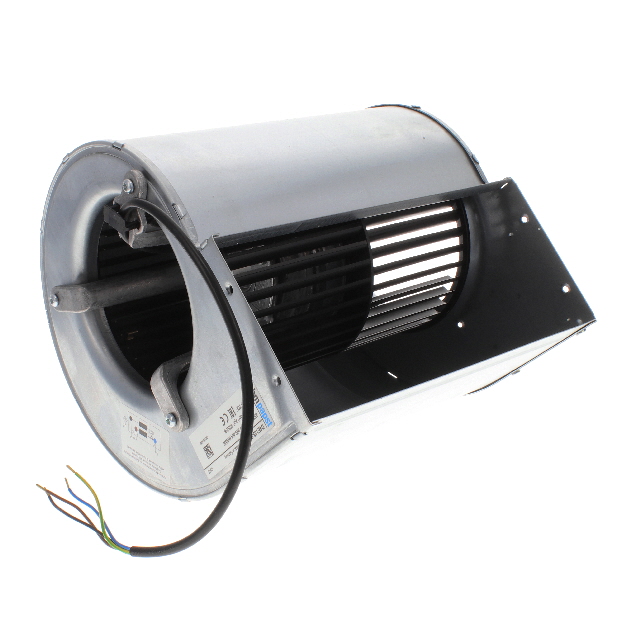

AC CENTRIFUGAL BLOWER

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC CENTRIFUGAL BLOWER

Technical Specifications

Parameters and characteristics for this part

Specification	D4E133-DL01-H9

Approval Agency	CCC, EAC, CE
Bearing Type	Ball
Current Rating (Amps)	490 mA
Fan Type	Blower, Centrifugal
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Steel
Operating Temperature	60 °C
Operating Temperature	60 °C
Power (Watts)	95 W
RPM	1180 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	203 mm
Size / Dimension [z]	213 mm
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width [y]	232 mm

Part	Fan Type	Bearing Type	Power (Watts)	RPM	Termination	Approval Agency	Ingress Protection	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Current Rating (Amps)	Voltage - Rated	Width [y]	Material - Frame	Material - Blade	Operating Temperature	Operating Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. D4E133-DL01-H9	Blower Centrifugal	Ball	95 W	1180 RPM	4 Wire Leads	CCC CE EAC	IP44	Capacitor Thermal Overload Protector (TOP)	213 mm	203 mm	Rectangular/Rounded	490 mA	230 VAC	232 mm	Steel	Nylon Polyamide (PA)	60 °C	60 °C
ebm-papst Inc. D4E133-DB01-51	Blower Centrifugal	Ball	95 W	1180 RPM	4 Wire Leads	CE	IP44	Capacitor Thermal Overload Protector (TOP)	213 mm	203 mm	Rectangular/Rounded	430 mA	230 VAC	270 mm	Steel	Steel			50 °C	-25 °C	-25 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 230VAC Rectangular/Rounded - 203mm L x 213mm H Ball 4 Wire Leads
