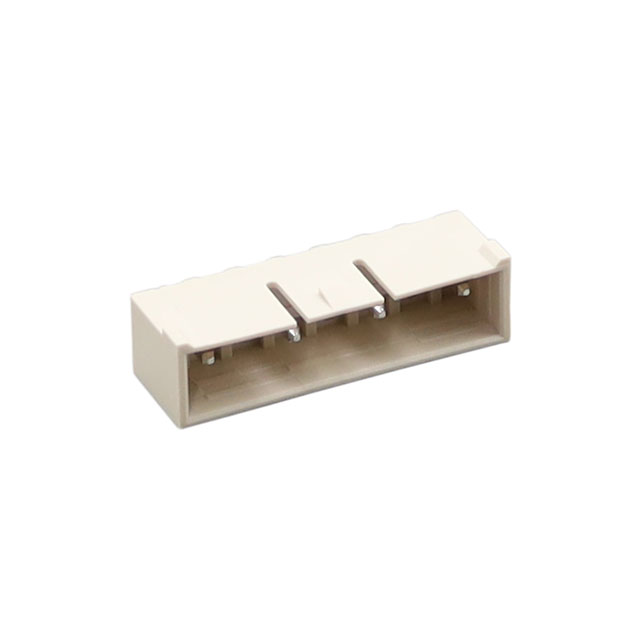

0353280460

Obsolete

Molex

7.92 PITCH W/B CONN.ASSY

Search across all available documentation for this part.

Obsolete

Molex

7.92 PITCH W/B CONN.ASSY

Technical Specifications

Parameters and characteristics for this part

Specification	0353280460

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	10 mm
Insulation Height	0.394 "
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.312 in
Pitch - Mating	7.92 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Mounting Type	Shrouding	Fastening Type	Contact Type	Contact Finish - Post	Material Flammability Rating	Number of Positions Loaded	Termination	Connector Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Style	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Voltage Rating	Number of Positions
Molex 0353280560	10 mm	0.394 "	0.312 in	7.92 mm	Natural	Brass	Through Hole	Shrouded - 4 Wall	Locking Ramp	Male Pin	Tin	UL94 V-0	All	Solder	Header	Square	0.228 in	5.8 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	-40 °C	105 ░C	1	Board to Cable/Wire	0.134 in	3.4 mm
Molex 0353280460	10 mm	0.394 "	0.312 in	7.92 mm	Natural	Brass	Through Hole	Shrouded - 4 Wall	Locking Ramp	Male Pin	Tin		All	Solder	Header	Square	0.228 in	5.8 mm	Polyamide (PA66) Nylon 6/6 Glass Filled	-40 °C	105 ░C	1	Board to Cable/Wire	0.134 in	3.4 mm	Varies by Wire Gauge	250 VAC	4
