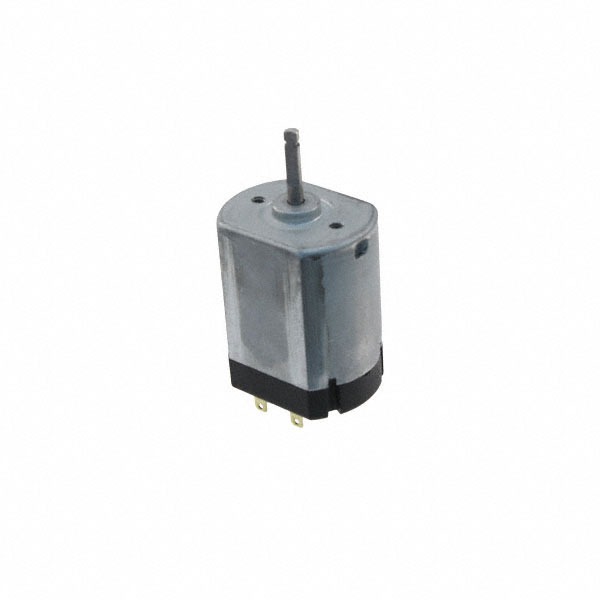

PWN10VEE24AA
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 11139 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
PWN10VEE24AA
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 11139 RPM 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PWN10VEE24AA |
|---|---|
| Diameter - Shaft [diameter] | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in |
| Function | Standard |
| Length - Shaft and Bearing [x] | 0.445 in |
| Length - Shaft and Bearing [x] | 11.3 mm |
| Motor Type | Brushed |
| Mounting Hole Spacing | 0.488 in |
| Mounting Hole Spacing | 12.4 mm |
| RPM | 11139 RPM |
| Size / Dimension [diameter] | 20.4 mm |
| Size / Dimension [diameter] | 0.803 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.277 oz-in |
| Torque - Rated (oz-in / mNm) | 1.96 mNm |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
| Weight | 22.23 g |
| Weight | 0.049 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.22 | |
| 5 | $ 3.88 | |||
| 10 | $ 3.74 | |||
| 25 | $ 3.57 | |||
| 50 | $ 3.44 | |||
| 100 | $ 3.32 | |||
| 250 | $ 3.16 | |||
| 500 | $ 3.05 | |||
| 1000 | $ 2.94 | |||
Description
General part information
PWN10VEE Series
Brushed DC Motor Standard 11139 RPM 24VDC
