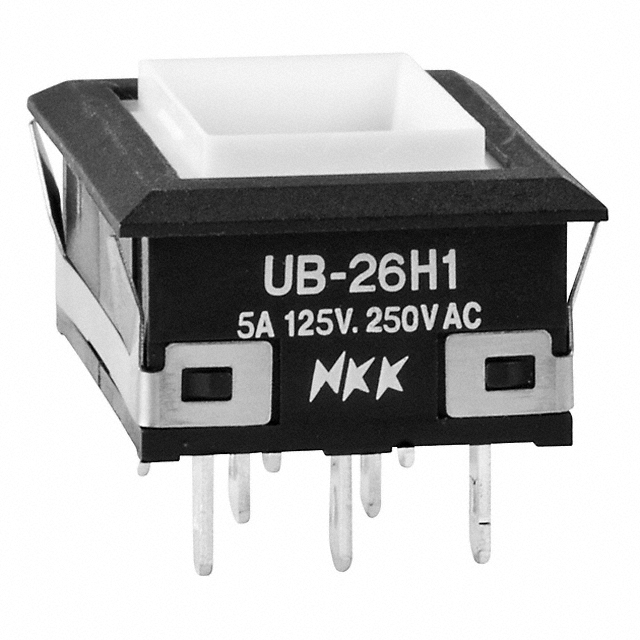

UB26NKW015C - UB26NKW015C

UB26NKW015C

Active
NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
UB26NKW015C - UB26NKW015C

UB26NKW015C

Active
NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationUB26NKW015C
Actuator MarkingNo Marking
Actuator TypePlunger for Cap
CircuitDPDT
Current Rating (Amps)5 A
Electrical Life10000 Cycles
FeaturesStainless Steel
Illumination Type, ColorRed, LED
Illumination Voltage (Nominal)1.85 VDC
Mechanical Life200000 Cycles
Mounting TypePanel Mount, Snap-In
Operating Temperature [Max]50 °C
Operating Temperature [Min]-25 °C
Panel Cutout Dimensions [x]22.4 mm
Panel Cutout Dimensions [y]16.2 mm
Switch FunctionOn-On
Termination StyleSolder Lug
TypeIlluminated, Standard
Voltage Rating - AC125 V
Voltage Rating - DC30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 13.90
10$ 12.56
25$ 11.96
50$ 11.35
100$ 10.95
250$ 10.28
500$ 9.40
1000$ 8.31
NewarkEach 1$ 25.88
5$ 24.58
10$ 22.78
25$ 20.78
50$ 17.99
100$ 16.79
250$ 15.29

Description

General part information

UB26NKW Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
