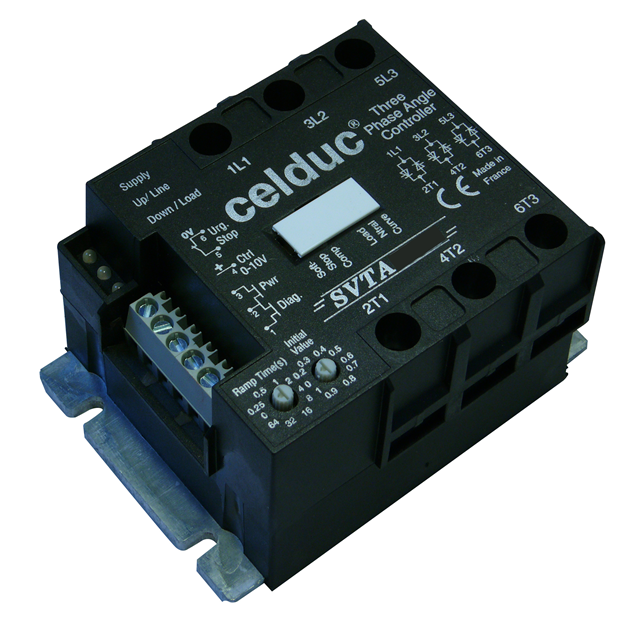

SVTA4694E
ActiveCelduc Inc.
SSR RELAY SPST-NO 125A 200-480V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SVTA4694E
ActiveCelduc Inc.
SSR RELAY SPST-NO 125A 200-480V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SVTA4694E |
|---|---|
| Approval Agency | VDE, cULus, UL |
| Load Current | 125 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 500 mOhm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 20 mA |
| Voltage - Input [Min] | 4 mA |
| Voltage - Load [Max] | 480 V |
| Voltage - Load [Min] | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 964.04 | |
Description
General part information
SVTA46 Series
Solid State SPST-NO (1 Form A) Module
