M80-8891801

Active

Harwin Inc.

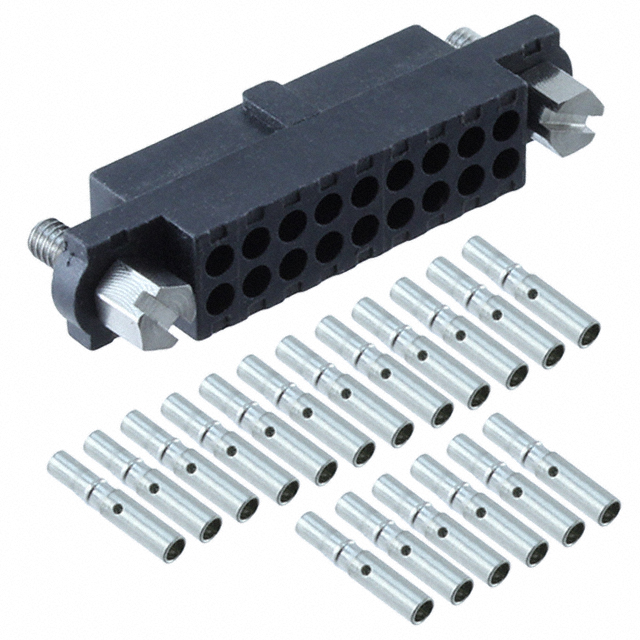

9+9 POS. FEMALE DIL 22AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datamate range: signal connectors (HRi)+1

M80-8891801

Active

Harwin Inc.

9+9 POS. FEMALE DIL 22AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Datamate range: signal connectors (HRi)+1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8891801

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

M80-889 Series

Part	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Wire Gauge	Connector Type	Pitch [x]	Pitch [x]	Fastening Type	Number of Positions	Contact Finish	Contact Type	Number of Rows	Wire Type	Cable Termination	Number of Positions
Harwin Inc. M80-8891805	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp	18	Gold	Female Socket	2	Discrete	Crimp
Harwin Inc. M80-8891605	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp		Gold	Female Socket	2	Discrete	Crimp	16
Harwin Inc. M80-8890805	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp	8	Gold	Female Socket	2	Discrete	Crimp
Harwin Inc. M80-8892605	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp	26	Gold	Female Socket	2	Discrete	Crimp
Harwin Inc. M80-8890405	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp	4	Gold	Female Socket	2	Discrete	Crimp
Harwin Inc. M80-8892005	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp	20	Gold	Female Socket	2	Discrete	Crimp
Harwin Inc. M80-8891405	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp	14	Gold	Female Socket	2	Discrete	Crimp
Harwin Inc. M80-8891801	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp	18	Gold	Female Socket	2	Discrete	Crimp
Harwin Inc. M80-8892601	2 mm	0.079 in	0.3 Ám	11.8 Áin	Black	Free Hanging (In-Line)	22 AWG	Receptacle	0.079 in	2 mm	Locking Ramp	26	Gold	Female Socket	2	Discrete	Crimp
