C96-NWA24H-NAO
ActiveVisual Communications Company - VCC
PMI-PROC-PL-18*DN
Deep-Dive with AI
Search across all available documentation for this part.
C96-NWA24H-NAO
ActiveVisual Communications Company - VCC
PMI-PROC-PL-18*DN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C96-NWA24H-NAO |
|---|---|
| Current | 17 mA |
| Lamp Color | Amber |
| Lens Color | Amber |
| Lens Size [diameter] | 8.5 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 7500 mcd |
| Panel Cutout Dimensions [x] | 7.37 mm |
| Panel Cutout Dimensions [x] | 0.29 in |
| Panel Cutout Shape | Round |
| Termination Style | PC Pin |
| Type | LED |
| Viewing Angle | 30 ° |
| Voltage | 24 V |
| Wavelength - Peak | 592 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.30 | |
| 25 | $ 9.28 | |||
| 100 | $ 7.79 | |||
| 500 | $ 7.16 | |||
| 1000 | $ 6.76 | |||
Description
General part information
C96-NWA24H Series

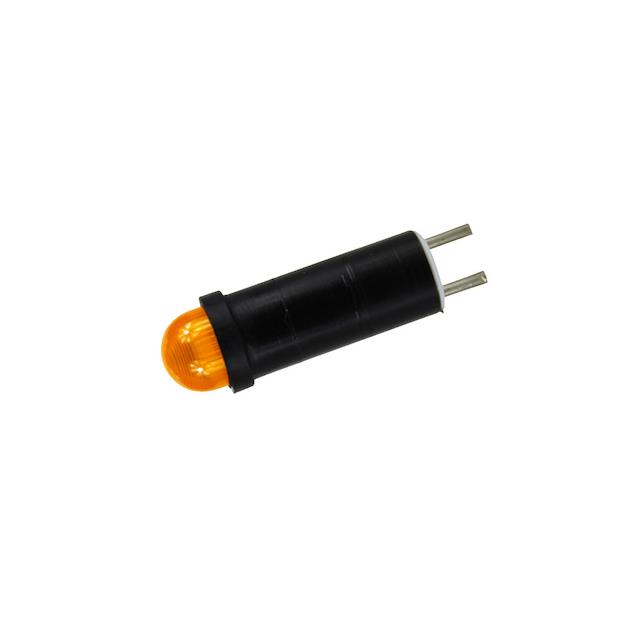

LED Panel Indicator Amber Diffused 30° 24V 17mA PC Pin
Documents
Technical documentation and resources
No documents available
