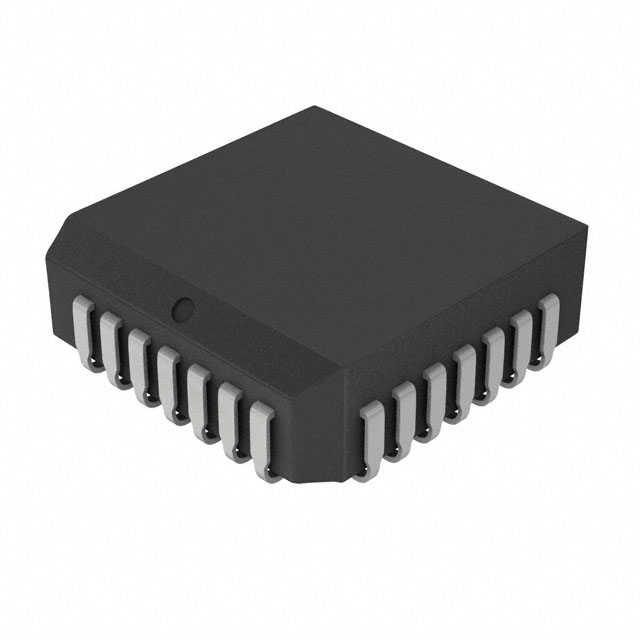

74FCT388915TCJG8 - 28-PLCC

74FCT388915TCJG8

Obsolete
Renesas Electronics Corporation

IC PLL CLOCK DRIVER 28PLCC

Deep-Dive with AI

Search across all available documentation for this part.

74FCT388915TCJG8 - 28-PLCC

74FCT388915TCJG8

Obsolete
Renesas Electronics Corporation

IC PLL CLOCK DRIVER 28PLCC

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification74FCT388915TCJG8
Differential - Input:OutputFalse
Mounting TypeSurface Mount
Number of Circuits1
Operating Temperature [Max]70 °C
Operating Temperature [Min]0 °C
OutputLVCMOS, LVTTL
Package / Case28-LCC (J-Lead)
PLLYes with Bypass
Ratio - Input:Output [custom]8
Ratio - Input:Output [custom]2
Supplier Device Package28-PLCC (11.51x11.51)
TypePLL Clock Driver
Voltage - Supply [Max]3.6 V
Voltage - Supply [Min]3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

74FCT388915T Series

The FCT388915T uses phase-lock loop technology to lock the frequency and phase of outputs to the input reference clock. It provides low skew clock distribution for high performance PCs and workstations. One of the outputs is fed back to the PLL at the FEEDBACK input resulting in essentially zero delay across the device. The PLL consists of the phase/ frequency detector, charge pump, loop filter and VCO. The VCO is designed for a 2Q operating frequency range of 40MHz to f2Q Max. The FCT388915T provides 8 outputs, the Q5 output is inverted from the Q outputs. The 2Q runs at twice the Q frequency and Q/2 runs at half the Q frequency. The FREQ_SEL control provides an additional ÷ 2 option in the output path. PLL _EN allows bypassing of the PLL, which is useful in static test modes. When PLL_EN is low, SYNC input may be used as a test clock. In this test mode, the input frequency is not limited to the specified range and the polarity of outputs is complementary to that in normal operation (PLL_EN = 1). The LOCK output attains logic HIGH when the PLL is in steady-state phase and frequency lock. When OE/RST is low, all the outputs are put in high impedance state and registers at Q, Q and Q/2 outputs are reset. The FCT388915T requires one external loop filter component as recommended in Figure 3.
