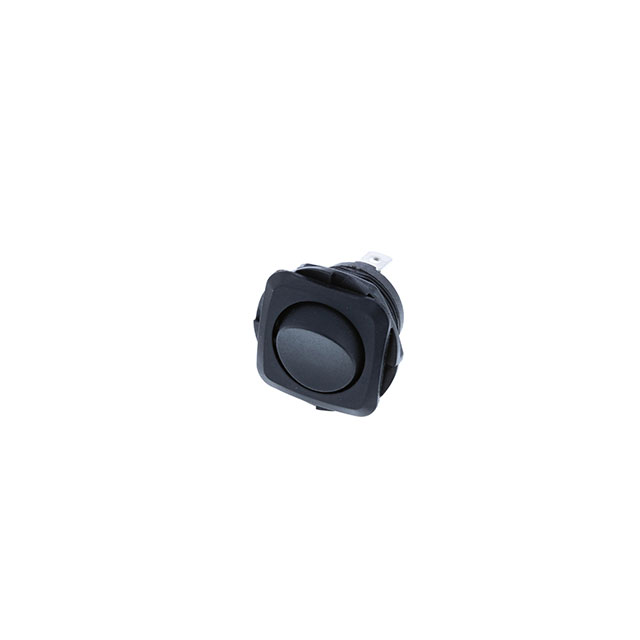

RB1-1D-AC-2-B

Active

Switch Components

VAC SCREW, SPDT ON-ON

Search across all available documentation for this part.

Active

Switch Components

VAC SCREW, SPDT ON-ON

Technical Specifications

Parameters and characteristics for this part

Specification	RB1-1D-AC-2-B

Actuator Marking	No Marking
Actuator Type	Round
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Termination Style	Color - Actuator/Cap	Actuator Type	Actuator Marking	Circuit	Voltage Rating - AC
Switch Components RB1-1D-AC-2-B	20.2 mm	On-On	-25 °C	85 °C	16 A	Panel Mount Threaded Body with Nut	Quick Connect - 0.187" (4.7mm)	Black	Round	No Marking	SPDT	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Threaded Body with Nut
