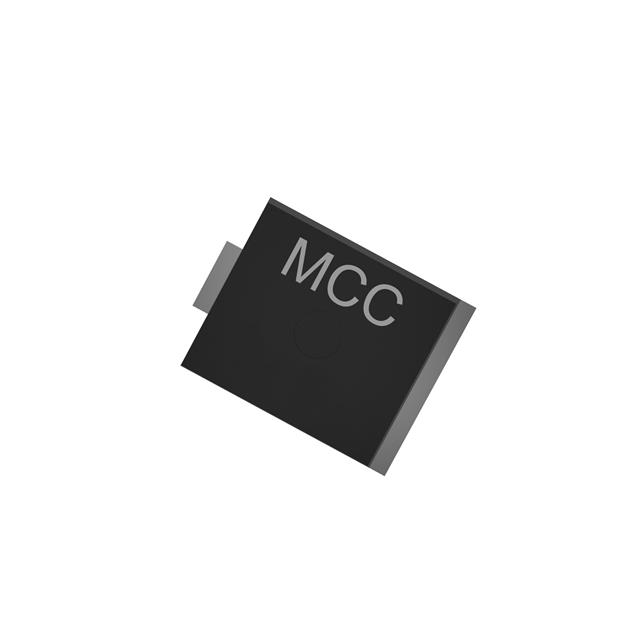

SMEJ66CA-TP

Active

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	SMEJ66CA-TP

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	10000 A
Current - Peak Pulse (10/1000µs)	10 kA
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Flat Leads
Power Line Protection	False
Supplier Device Package	SME
Type	Zener
Voltage - Breakdown (Min) [Min]	72 V
Voltage - Clamping (Max) @ Ipp [Max]	120 V

Part	Mounting Type	Type	Applications	Power Line Protection	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]
Micro Commercial Components SMEJ66CA-TP	Surface Mount	Zener	General Purpose		120 V	125 ¯C	-55 °C	2-SMD Flat Leads	SME	10000 A	10 kA	72 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 13.50

General part information

120V Clamp 10000A (10kA) (8/20µs) Ipp Tvs Diode Surface Mount SME
