346-025-558-602
ActiveEDAC Inc.

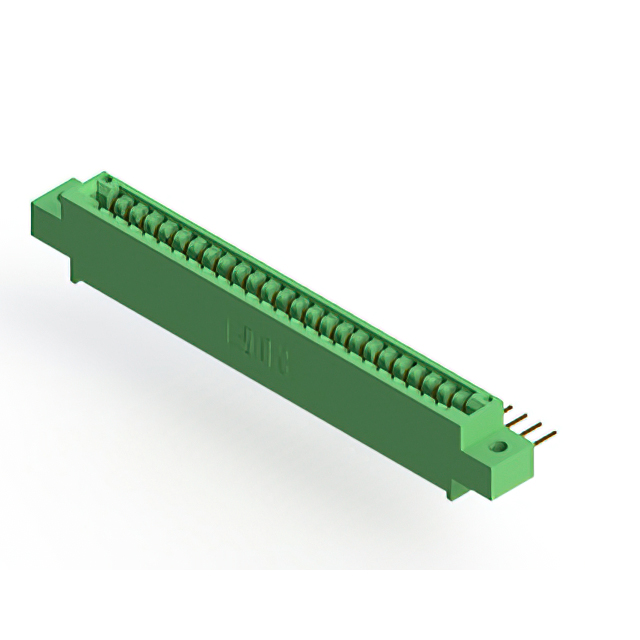

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 25 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
346-025-558-602
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 25 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-025-558-602 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
346-025 Series
| Part | Card Type | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Contact Type | Mounting Type | Termination Rows | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Pitch [x] | Pitch [x] | Color | Gender | Contact Finish | Read Out | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | |||
EDAC Inc. | Non Specified - Single Edge | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | |||
EDAC Inc. | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | ||||||
EDAC Inc. | Non Specified - Single Edge | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole Right Angle | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Non Specified - Single Edge | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole Right Angle | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | Card Guides | ||||
EDAC Inc. | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | |||||
EDAC Inc. | Non Specified - Single Edge | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | |||
EDAC Inc. | Non Specified - Single Edge | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | Side Mount Opening Unthreaded | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Single Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 25 | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Polyester Thermoplastic | Cantilever | Through Hole | 1 | 1 | 10 Áin | 0.25 Ám | Copper Alloy | 0.125 in | 3.18 mm | Green | Female | Gold | Single |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-025 Series
25 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
