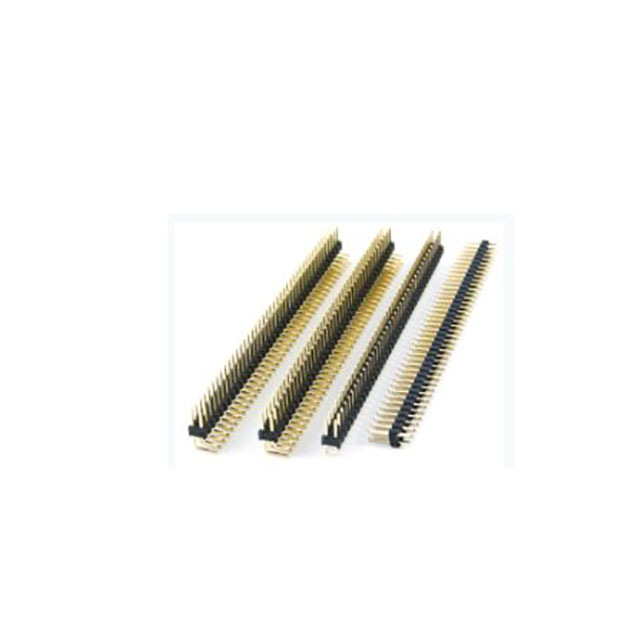

2011-2X06G00SB-HT

Active

Oupiin

PIN HEADER, DUAL ROW, 3 PIN PER

Search across all available documentation for this part.

Active

Oupiin

PIN HEADER, DUAL ROW, 3 PIN PER

Technical Specifications

Parameters and characteristics for this part

Specification	2011-2X06G00SB-HT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.457 "
Overall Contact Length	11.61 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating [x]	Material Flammability Rating	Contact Type	Number of Positions	Number of Rows	Shrouding	Insulation Color	Termination	Contact Finish - Post	Contact Shape	Connector Type	Contact Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Overall Contact Length	Overall Contact Length
Oupiin 2011-2X06G00SB-HT	Gold	Push-Pull	6.1 mm	0.24 in	UL94 V-0	Male Pin	12	2	Unshrouded	Black	Solder	Gold	Square	Header	Copper Alloy	All	-40 °C	105 ░C	Glass Filled Polyester Thermoplastic	0.1 in	2.54 mm	0.098 in	2.5 mm	Through Hole	2.54 mm	0.1 in	0.118 in	3 mm	2 A	0.457 "	11.61 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 12 position 0.100" (2.54mm)
