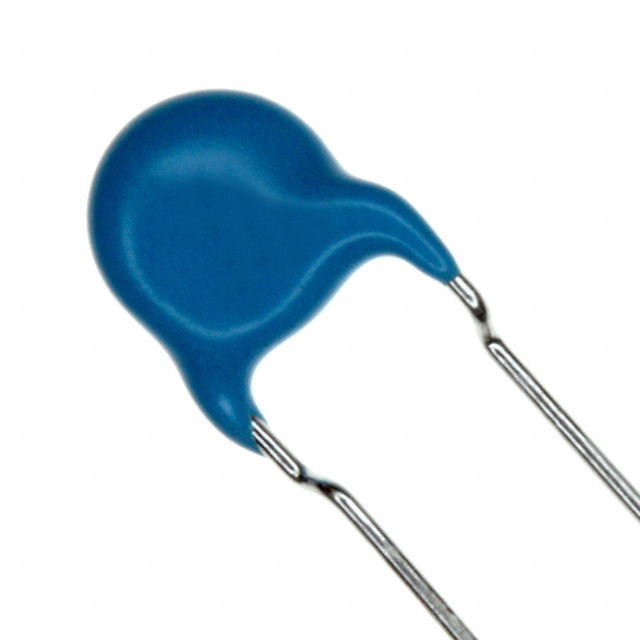

DEA1X3A331JA2B

Obsolete

Murata Power Solutions Inc.

CAP CER 330PF 1KV SL RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP CER 330PF 1KV SL RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Capacitance	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Package / Case	Features	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Lead Style	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DEA1X3A331JA2B	13 mm	0.512 "	General Purpose	10 mm	0.394 in	Through Hole	330 pF	SL	1 kV	1000 V	Disc Radial	High Voltage	5 %	125 °C	-25 °C	Formed Leads	5 mm	0.197 in
Murata Power Solutions Inc. DEA1X3A101JN2A			General Purpose	6 mm	0.236 in	Through Hole	100 pF	SL	1 kV	1000 V	Disc Radial	High Voltage	5 %	125 °C	-25 °C	Formed Leads	5 mm	0.197 in	0.354 in	9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

330 pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc
