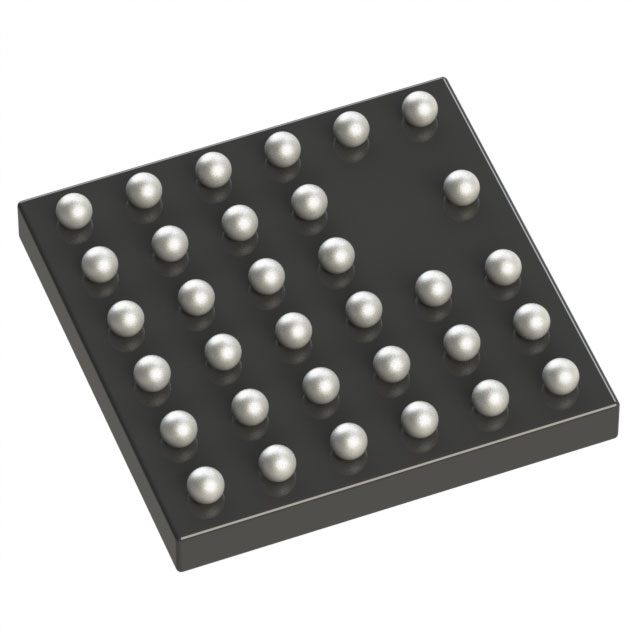

NRF52810-CAAA-E-R7

Active

Nordic Semiconductor ASA

IC RF TXRX+MCU BLE 33WLCSP

Deep-Dive with AI

Search across all available documentation for this part.

NRF52810-CAAA-E-R7

Active

Nordic Semiconductor ASA

IC RF TXRX+MCU BLE 33WLCSP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NRF52810-CAAA-E-R7

Current - Transmitting [Max]	7 mA
Current - Transmitting [Min]	4.6 mA
Data Rate (Max)	2 Mbps
Frequency	2.4 GHz
GPIO	21
Memory Size	192 kB, 24 kB
Modulation	FSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	WLCSP, 33-UFBGA
Power - Output	-96 dBm
Protocol	Bluetooth, Thread
RF Family/Standard	Bluetooth
Serial Interfaces	PCM, UART, I2C, SPI, PWM
Supplier Device Package	33-WLCSP
Supplier Device Package [x]	2.48
Supplier Device Package [y]	2.46
Type	TxRx + MCU
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.7 V

NRF52810 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Modulation	Type	Data Rate (Max)	Current - Transmitting [Min]	Current - Transmitting [Max]	Protocol	Supplier Device Package	GPIO	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Serial Interfaces	Memory Size	Frequency	Power - Output	Current - Receiving [Min]	Current - Receiving [Max]	Supplier Device Package [x]	Supplier Device Package [y]
Nordic Semiconductor ASA NRF52810-QCAA-E-R7	85 °C	-40 °C	Bluetooth	FSK	TxRx + MCU	2 Mbps	4.6 mA	7 mA	Bluetooth Thread	32-QFN (5x5)	21	Surface Mount	3.6 V	1.7 V	32-VFQFN Exposed Pad	I2C PCM PWM SPI UART	24 kB 192 kB	2.4 GHz	-96 dBm
Nordic Semiconductor ASA NRF52810-QFAA-E-R	85 °C	-40 °C	Bluetooth	FSK	TxRx + MCU	2 Mbps	2.1 mA	15.4 mA	Bluetooth v5.0	48-QFN (6x6)	32	Surface Mount	3.6 V	1.7 V	48-VFQFN Exposed Pad	I2C SPI UART	24 kB 192 kB	2.4 GHz	4 dBm	3.5 mA	11.2 mA
Nordic Semiconductor ASA NRF52810-QCAA-E-R	85 °C	-40 °C	Bluetooth	FSK	TxRx + MCU	2 Mbps	2.1 mA	15.4 mA	Bluetooth v5.0	32-QFN (5x5)	32	Surface Mount	3.6 V	1.7 V	32-VFQFN Exposed Pad	I2C SPI UART	24 kB 192 kB	2.4 GHz	4 dBm	3.5 mA	11.2 mA
Nordic Semiconductor ASA NRF52810-QFAA-R	85 °C	-40 °C	Bluetooth		TxRx + MCU	2 Mbps	4.6 mA	25 mA	Bluetooth v5.0	48-QFN (6x6)	32	Surface Mount	3.6 V	1.7 V	48-VFQFN Exposed Pad	I2C UART		2.4 GHz	4 dBm
Nordic Semiconductor ASA NRF52810-QCAA-T	85 °C	-40 °C	Bluetooth		TxRx + MCU	2 Mbps	4.6 mA	25 mA	Bluetooth v5.0	32-QFN (5x5)	32	Surface Mount	3.6 V	1.7 V	32-VFQFN Exposed Pad	I2C UART	24 kB 192 kB	2.4 GHz	4 dBm
Nordic Semiconductor ASA NRF52810-QFAA-T	85 °C	-40 °C	Bluetooth		TxRx + MCU	2 Mbps	4.6 mA	25 mA	Bluetooth v5.0	48-QFN (6x6)	32	Surface Mount	3.6 V	1.7 V	48-VFQFN Exposed Pad	I2C UART		2.4 GHz	4 dBm
Nordic Semiconductor ASA NRF52810-CAAA-E-R7	85 °C	-40 °C	Bluetooth	FSK	TxRx + MCU	2 Mbps	4.6 mA	7 mA	Bluetooth Thread	33-WLCSP	21	Surface Mount	3.6 V	1.7 V	33-UFBGA WLCSP	I2C PCM PWM SPI UART	24 kB 192 kB	2.4 GHz	-96 dBm			2.48	2.46
Nordic Semiconductor ASA NRF52810-QFAA-E-R7	85 °C	-40 °C	Bluetooth	FSK	TxRx + MCU	2 Mbps	4.6 mA	7 mA	Bluetooth Thread	48-QFN (6x6)	21	Surface Mount	3.6 V	1.7 V	48-VFQFN Exposed Pad	I2C PCM PWM SPI UART	24 kB 192 kB	2.4 GHz	-96 dBm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.21
		100	$ 1.88
		500	$ 1.63
	Digi-Reel®	1	$ 2.21
		100	$ 1.88
		500	$ 1.63
	Tape & Reel (TR)	1500	$ 1.50

Description

General part information

NRF52810 Series

IC RF TxRx + MCU Bluetooth Bluetooth, Thread 2.4GHz 33-UFBGA, WLCSP

Documents

Technical documentation and resources

No documents available
