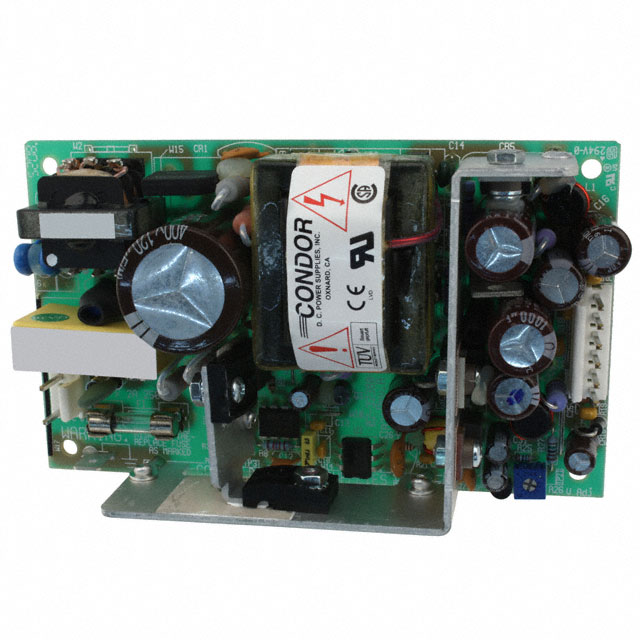

GPM40BG

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-15V 40W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-15V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	GPM40BG

Applications	Medical
Approval Agency	cURus, CE, TUV
Current - Output 1	4 A
Current - Output 2	2 A
Current - Output 3	400 mA
Efficiency	70 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	0 °C
Power (Watts)	50 W, 40 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.28 in
Size / Dimension [z]	32.5 mm
Type	Open Frame
Voltage - Output 1	5.1 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

Part	Voltage - Output 2	Applications	Current - Output 2	Voltage - Output 3	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Output 1	Features	Efficiency	Current - Output 1	Mounting Type	Approval Agency	Power (Watts)	Current - Output 3	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
SL POWER / Advanced Energy GPM40AG	12 V	Medical	2 A	-12 V		0 °C	50 °C	3	5.1 V	Adjustable Output Remote Sense Universal Input	70 %	4 A	Chassis Mount	CE cURus TUV	40 W 50 W	400 mA	Open Frame	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm
SL POWER / Advanced Energy GPM40BG	15 V	Medical	2 A	-15 V		0 °C	50 °C	3	5.1 V	Adjustable Output Remote Sense Universal Input	70 %	4 A	Chassis Mount	CE cURus TUV	40 W 50 W	400 mA	Open Frame	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 3 Output 5.1V 15V -15V 85 ~ 264 VAC Input
