UT012JCPGN

Active

Souriau-Sunbank by Eaton

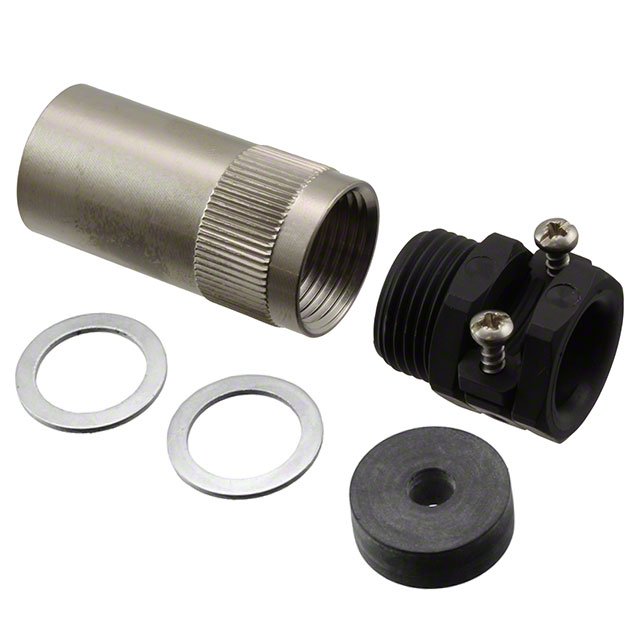

UTO12JCPGN CABLE CLAMP, METAL PG TUBE AND PLASTIC STRAIN RELIEF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

UT012JCPGN

Active

Souriau-Sunbank by Eaton

UTO12JCPGN CABLE CLAMP, METAL PG TUBE AND PLASTIC STRAIN RELIEF

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT012JCPGN

Cable Exit	180 °
Cable Opening [custom]	0.531 in
Cable Opening [custom]	13.5 mm
Color	Silver
Features	Clamp Screws, Strain Relief
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Includes	2 Screws, 2 Washers, 1 Cable Clamp, 1 Backshell, 1 Grommet
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Aluminum Alloy
Material Flammability Rating	UL94 V-0
Plating	Nickel
Shell Size - Insert	12
Shielding	Unshielded
Thread Size	PG11
Type	Backshell, Cable Clamp

UT012 Series

Part	Type	Material	Shielding	Thread Size	Features	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]	Color	Material Flammability Rating	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Accessory Type	Cable Opening [custom]	Cable Opening [custom]	Plating	Includes
Souriau-Sunbank by Eaton UT012AC	Backshell Cable Clamp	Metal	Unshielded	11/16-24 UNEF	Clamp Screws	12	0.323 in	8.2 mm	Silver	UL94 V-0	180 °	19.4 mm	0.764 in	Trim Trio® UTO and UTOW Connectors
Souriau-Sunbank by Eaton UT012JCS	Backshell Cable Clamp	Brass	Unshielded	PG11	Sealing Gland Strain Relief	12			Silver	UL94 V-0	180 °			Trim Trio® UTO and UTOW Connectors	6 mm	0.236 in	0.394 in	10 mm	IP68 IP69K
Souriau-Sunbank by Eaton UT012DCG		Metal			Dust Tight Metal Chain Waterproof	12			Silver					Trim Trio® UTG Trim Trio® UTO Trim Trio® UTOW Trim Trio® UTP Receptacles						Cap (Cover) Dust
Souriau-Sunbank by Eaton UT012LPGN	Backshell Cable Clamp	Brass	Unshielded	PG11	Clamp Screws Strain Relief	12			Silver	UL94 V-0	90 °			Trim Trio® UTO and UTOW Connectors							0.276 in 0.629 in	7 mm 16 mm
Souriau-Sunbank by Eaton UT012JCPGN	Backshell Cable Clamp	Aluminum Alloy	Unshielded	PG11	Clamp Screws Strain Relief	12			Silver	UL94 V-0	180 °			Trim Trio® UTO and UTOW Connectors					IP65 - Dust Tight Water Resistant		0.531 in	13.5 mm	Nickel	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers
Souriau-Sunbank by Eaton UT012AD	Backshell Heat Shrink Adapter	Metal		11/16-24 UNEF		12			Silver		180 °	24 mm	0.945 in	Trim Trio® UTO and UTOW Connectors
Souriau-Sunbank by Eaton UT012030SH
Souriau-Sunbank by Eaton UT012JC	Backshell Cable Clamp	Brass	Unshielded	PG11	Sealing Gland Strain Relief	12			Silver	UL94 V-0	180 °			Trim Trio® UTO and UTOW Connectors	6 mm	0.236 in	0.394 in	10 mm	IP68 IP69K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.16
		10	$ 26.41
		25	$ 25.27
		50	$ 24.45
		100	$ 23.64
		250	$ 22.33
Newark	Each	1	$ 36.84
		50	$ 34.29
		100	$ 31.67
		500	$ 29.14
		1000	$ 25.86
		2500	$ 23.30
		5000	$ 21.54
		10000	$ 18.11

Description

General part information

UT012 Series

Silver Connector Backshell, Cable Clamp PG11 12

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
