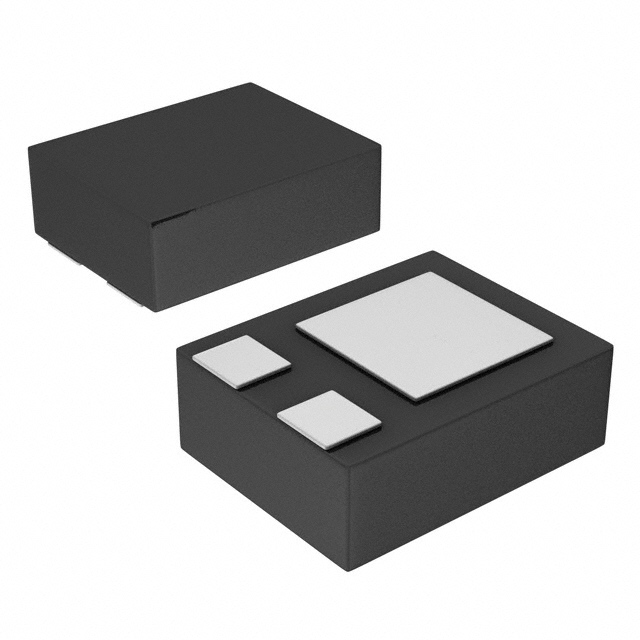

ZXTP26020DMFTA

Active

Diodes Inc

PNP, 20V, 1.25A, DFN1411-3

Search across all available documentation for this part.

Active

Diodes Inc

PNP, 20V, 1.25A, DFN1411-3

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTP26020DMFTA

Current - Collector (Ic) (Max) [Max]	1.25 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	235 hFE
Frequency - Transition	200 MHz
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-UDFN
Power - Max [Max]	1 W
Qualification	AEC-Q101
Supplier Device Package	DFN1411-3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	235 mV
Voltage - Collector Emitter Breakdown (Max)	20 V

PNP, 20V, 1.25A, DFN1411-3

Part	Supplier Device Package	Mounting Type	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Transistor Type	Power - Max [Max]	Grade	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Frequency - Transition
Diodes Inc ZXTP26020DMFTA	DFN1411-3	Surface Mount	1.25 A	100 nA	PNP	1 W	Automotive	235 mV	-55 °C	150 °C	AEC-Q101	235 hFE	3-UDFN	20 V	200 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PNP, 20V, 1.25A, DFN1411-3
