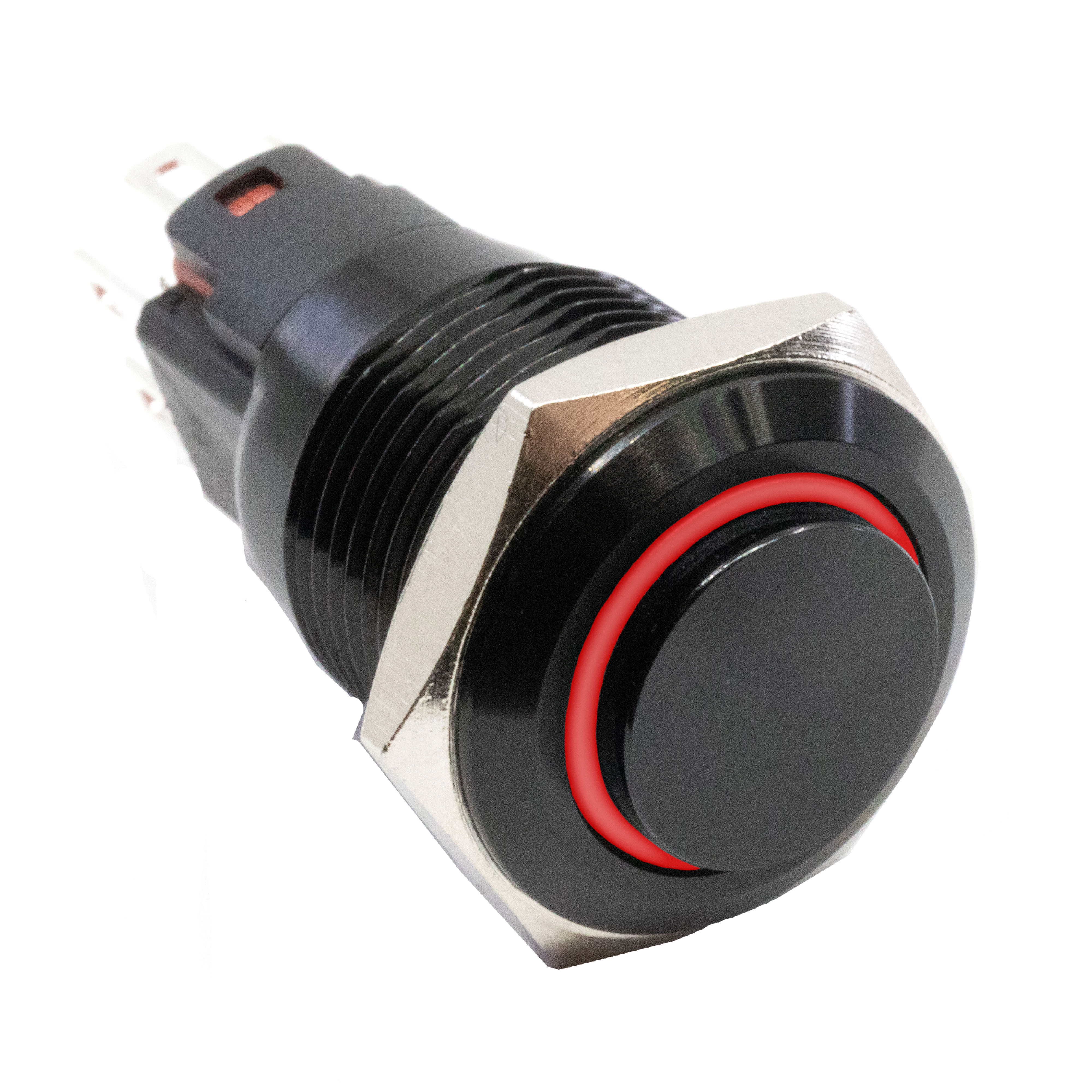

PVB3H2B0113R1

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPDT; 5A/250VAC; 2A/24VDC; IP67

Search across all available documentation for this part.

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPDT; 5A/250VAC; 2A/24VDC; IP67

Technical Specifications

Parameters and characteristics for this part

Specification	PVB3H2B0113R1

Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A, 500 mA
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED, Blue, Green
Illumination Voltage (Nominal)	1.8 VDC, 2.8 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	220 V
Voltage Rating - DC	24 V

Part	Termination Style	Termination Style	Termination Style	Circuit	Mechanical Life	Illumination Type, Color	Mounting Type	Current Rating (Amps)	Color - Actuator/Cap	Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Actuator Type	Electrical Life	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Ingress Protection
E-Switch PVB3H2B0113R1	0.11 in	Quick Connect Solder	2.8 mm	SPDT	1000000 Cycles	Blue Green LED Red	Panel Mount Front	2 A 500 mA	Black	Anti-Vandal Illuminated	55 °C	-25 °C	1.8 VDC 2.8 VDC	Button Round	50000 Cycles	24 V	On-Mom	220 V	16 mm	IP65 - Dust Tight Water Resistant
E-Switch PVB3F2B0113R1	0.11 in	Quick Connect Solder	2.8 mm	SPDT	1000000 Cycles	Blue Green LED Red	Panel Mount Front	2 A 500 mA	Black	Anti-Vandal Illuminated	55 °C	-25 °C	1.8 VDC 2.8 VDC	Button Flush Round	50000 Cycles	24 V	On-Mom	220 V	16 mm	IP65 - Dust Tight Water Resistant
E-Switch PVB3F2B0SS644	0.11 in	Quick Connect Solder	2.8 mm	SPDT	1000000 Cycles	Blue LED	Panel Mount Front	2 A 500 mA	Silver	Anti-Vandal Illuminated	55 °C	-25 °C	12 VDC	Button Flush Round	50000 Cycles	24 V	On-Mom	220 V	16 mm	IP65 - Dust Tight Water Resistant
E-Switch PVB3F230SS334	0.11 in	Quick Connect Solder	2.8 mm	SPDT	500000 Cycles	Green LED	Panel Mount Front	2 A 500 mA	Silver	Anti-Vandal Illuminated	55 °C	-25 °C	12 VDC	Button Flush Round	50000 Cycles	24 V	On-On	220 V	16 mm	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
