TR12AHC1N

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR CLAMP, STRAIGHT, SEALED, TRIDENT RINGLOCK SERIES, 12, NYLON (POLYAMIDE), 13.6 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR CLAMP, STRAIGHT, SEALED, TRIDENT RINGLOCK SERIES, 12, NYLON (POLYAMIDE), 13.6 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TR12AHC1N

Cable Exit	180 °
Cable Opening [custom]	0.535 in
Cable Opening [custom]	13.6 mm
Color	Black
Features	Grommet, Clamp Screws
For Use With/Related Products	Jacketed Cable

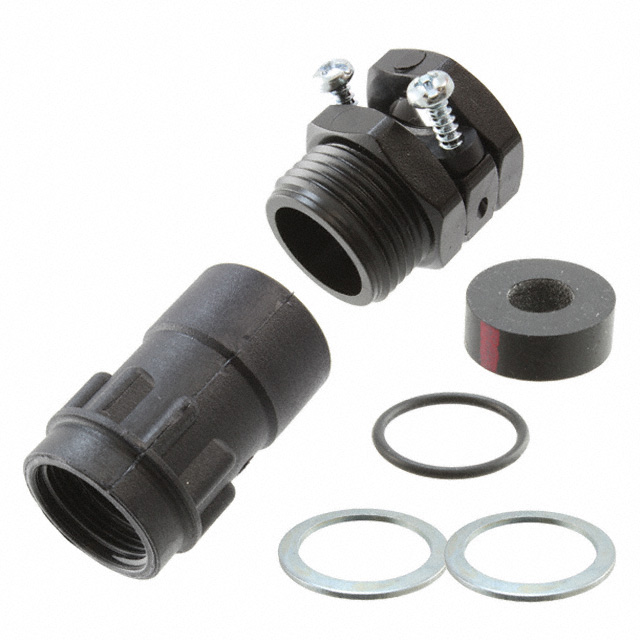

Includes	1 Grommet, 1 O-Ring, 2 Screws, 2 Washers, 2 pc Cable Clamp, 1 Backshell
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Shell Size - Insert	12
Shielding	Unshielded
Type	Backshell, Cable Clamp

Part	Cable Exit	Material	Features	Includes	Cable Opening	Cable Opening	Shielding	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Type	For Use With/Related Products	Color	Material Flammability Rating	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Thread Size
ITT Cannon, LLC TR12ASR1N	180 °	Polyamide (PA) Nylon	Clamp Screws	1 Backshell 2 Screws 3 Clamp Bars	12.78 mm	0.503 in	Unshielded	0.944 "	23.98 mm	12	Backshell Cable Clamp	Discrete Wires or Jacketed Cables	Black	UL94 V-0
ITT Cannon, LLC TR12AHC1N	180 °	Polyamide (PA) Nylon	Clamp Screws Grommet	1 Backshell 1 Grommet 1 O-Ring 2 pc Cable Clamp 2 Screws 2 Washers			Unshielded			12	Backshell Cable Clamp	Jacketed Cable	Black	UL94 V-0	IP65 - Dust Tight Water Resistant	0.535 in	13.6 mm
ITT Cannon, LLC TR12AAD	180 °	Metal					Unshielded	0.945 in	24 mm	12	Backshell Heat Shrink Adapter	Trident Ringlock (TR) Connectors	Silver					11/16-24 UNEF-2B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp 12
