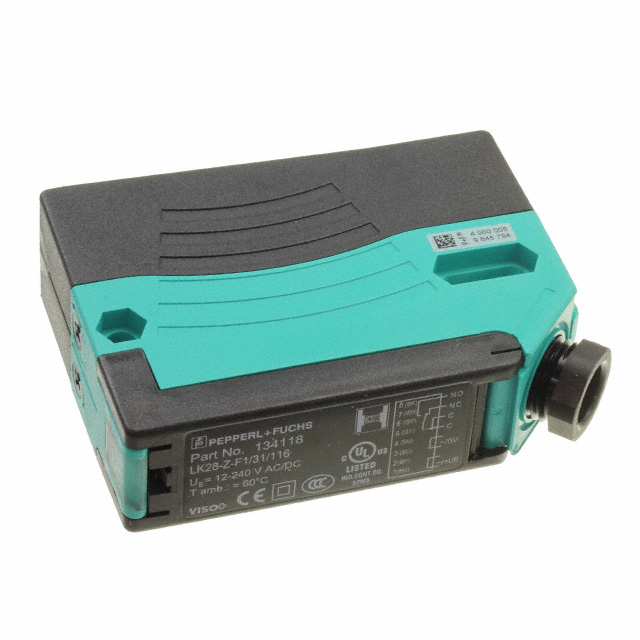

LK28-Z-F1/31/116

Active

PEPPERL+FUCHS

THRU BEAM RECEIVER

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

THRU BEAM RECEIVER

Technical Specifications

Parameters and characteristics for this part

Specification	LK28-Z-F1/31/116

Connection Method	Cable with Connector
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Relay - Dark-ON/Light-ON - Selectable
Response Time	20 ms
Sensing Method	Through-Beam
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	12 VAC

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Connection Method	Sensing Method	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Light Source
PEPPERL+FUCHS LK28-Z-F1/31/116	12 VAC	240 VAC	Relay - Dark-ON/Light-ON - Selectable	Cable with Connector	Through-Beam	20 ms	-40 °C	60 °C	IP67	Red LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 0.000" ~ 2559.055" (0m ~ 65m) Relay - Dark-ON/Light-ON - Selectable
