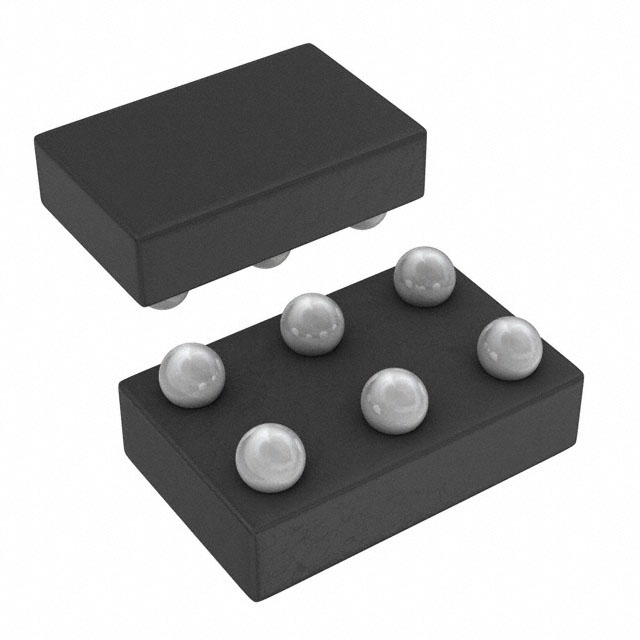

SN74AUP1T57YZPR

Obsolete

Texas Instruments

IC TRANSLATOR UNIDIR 6DSBGA

Search across all available documentation for this part.

Obsolete

Texas Instruments

IC TRANSLATOR UNIDIR 6DSBGA

Technical Specifications

Parameters and characteristics for this part

Specification	SN74AUP1T57YZPR

Channel Type	Unidirectional
Channels per Circuit	1
Features	Configurable Gate Logic Functions
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Single-Ended
Package / Case	6-XFBGA, DSBGA
Supplier Device Package	6-DSBGA
Translator Type	Voltage Level
Voltage - VCCA [Max] [custom]	2.7 V
Voltage - VCCA [Min] [custom]	1.8 V
Voltage - VCCB [Max]	3.6 V
Voltage - VCCB [Min]	2.3 V

Part	Mounting Type	Package / Case	Channel Type	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Supplier Device Package	Voltage - VCCA [Max] [custom]	Voltage - VCCA [Min] [custom]	Features	Channels per Circuit	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Translator Type
Texas Instruments SN74AUP1T57DBVT	Surface Mount	SOT-23-6	Unidirectional	3.6 V	2.3 V	SOT-23-6	2.7 V	1.8 V	Configurable Gate Logic Functions	1	1	85 °C	-40 °C	Single-Ended	Voltage Level
Texas Instruments SN74AUP1T57DSFR	Surface Mount	6-XFDFN	Unidirectional	3.6 V	2.3 V	6-SON (1x1)	2.7 V	1.8 V	Configurable Gate Logic Functions	1	1	85 °C	-40 °C	Single-Ended	Voltage Level
Texas Instruments SN74AUP1T57YZPR	Surface Mount	6-XFBGA DSBGA	Unidirectional	3.6 V	2.3 V	6-DSBGA	2.7 V	1.8 V	Configurable Gate Logic Functions	1	1	85 °C	-40 °C	Single-Ended	Voltage Level
Texas Instruments SN74AUP1T57YFPR	Surface Mount	6-XFBGA DSBGA	Unidirectional	3.6 V	2.3 V	6-DSBGA	2.7 V	1.8 V	Configurable Gate Logic Functions	1	1	85 °C	-40 °C	Single-Ended	Voltage Level

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltage Level Translator Unidirectional 1 Circuit 1 Channel 6-DSBGA
