Technical Specifications
Parameters and characteristics for this part
| Specification | 1227A1 Q5HU1000 |
|---|---|
| Cable Type | Multi-Pair, Cat3 |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Features | UV Resistant |
| Jacket (Insulation) Diameter [diameter] | 4.39 mm |
| Jacket (Insulation) Diameter [diameter] | 0.173 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Ratings | UL Style CMR |
| Usage | Ethernet |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 0.37 | |
Description
General part information
1227A1 Series

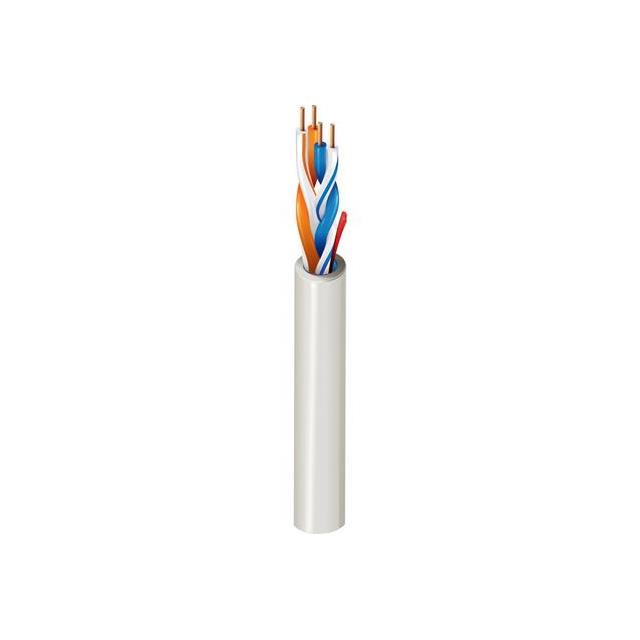

4 (2 Pair) Conductor Multi-Pair, Cat3 Cable White 24 AWG 1000.0' (304.8m)
Documents
Technical documentation and resources
