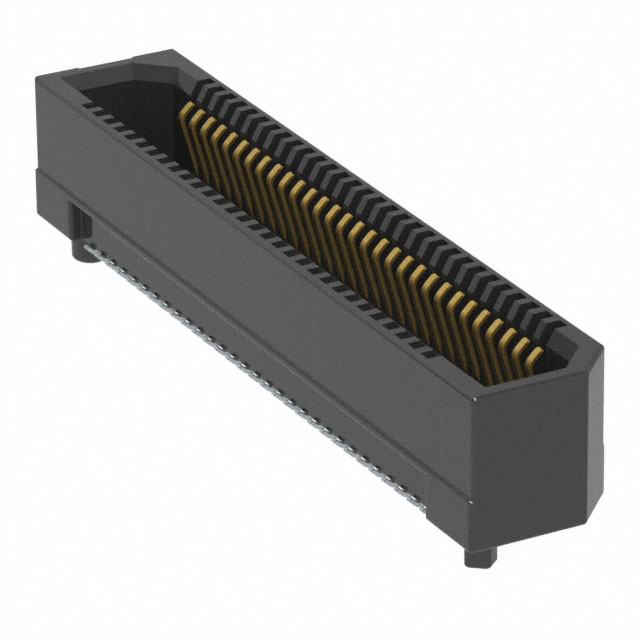

ER8-60S-0.8SV-5H

Active

Hirose Electric USA, Inc.

CONN BOARD TO BOARD RCP 60 POS 0.8MM SOLDER ST SMD REEL

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN BOARD TO BOARD RCP 60 POS 0.8MM SOLDER ST SMD REEL

Technical Specifications

Parameters and characteristics for this part

Specification	ER8-60S-0.8SV-5H

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	0.211 in
Height Above Board	5.35 mm
Mated Stacking Heights	10 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Connector Type	Mated Stacking Heights	Number of Rows	Mounting Type	Number of Positions
Hirose Electric USA, Inc. ER8-60S-0.8SV-5H	0.211 in	5.35 mm	0.8 mm	0.031 in	0.76 Ám	30 Áin	Gold	Board Guide	Receptacle Outer Shroud Contacts	7 mm 10 mm	2	Surface Mount	60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
