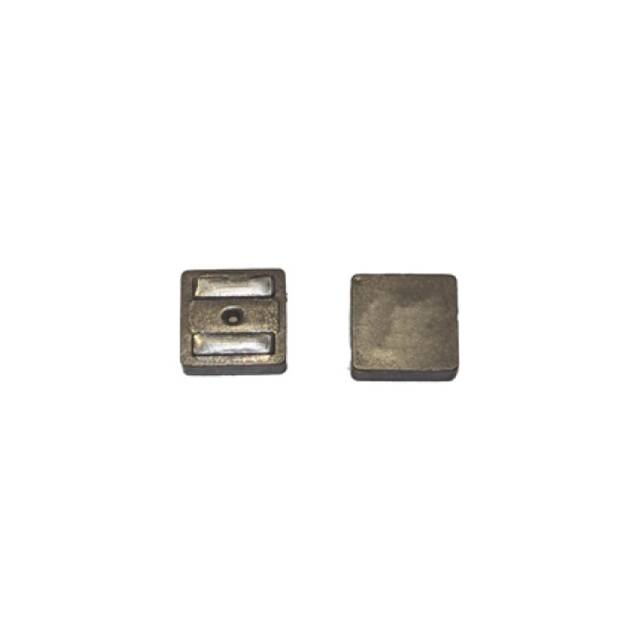

EXL1V0606-1R5-R
ActiveEaton - Electronics Division
FIXED IND 1.5UH 16A 5.61MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EXL1V0606-1R5-R
ActiveEaton - Electronics Division
FIXED IND 1.5UH 16A 5.61MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EXL1V0606-1R5-R |
|---|---|
| Current - Saturation (Isat) | 14 A |
| Current Rating (Amps) | 16 A |
| DC Resistance (DCR) [Max] | 5.61 mOhm |
| Frequency - Self Resonant | 31 MHz |
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 7.2 mm |
| Size / Dimension [x] | 0.283 in |
| Size / Dimension [y] | 0.272 " |
| Size / Dimension [y] | 6.9 mm |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 750 | $ 0.59 | |
Description
General part information
EXL1V0606 Series
1.5 µH Shielded Molded Inductor 16 A 5.61mOhm Max Nonstandard
