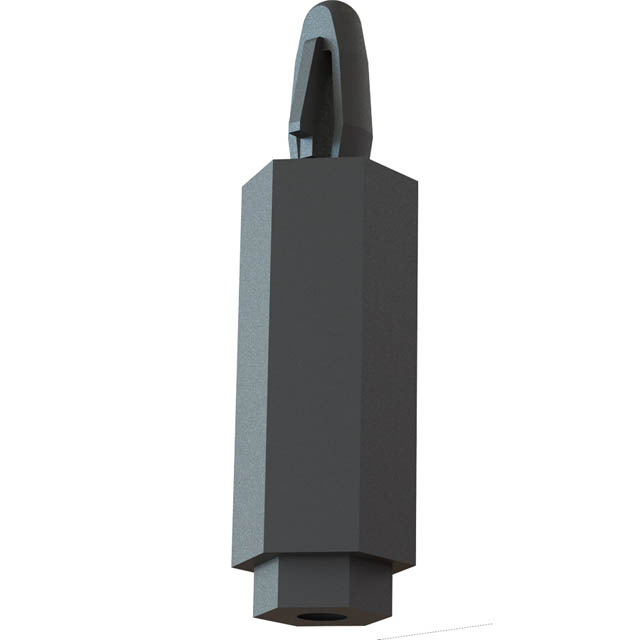

TCBN-T1-M3-8-60

Active

Essentra Access Solutions

BRD SPT SNAP LOCK SCREW MNT 60MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK SCREW MNT 60MM

Technical Specifications

Parameters and characteristics for this part

Specification	TCBN-T1-M3-8-60

Between Board Height	60 mm
Between Board Height	2.362 in
Features	M3 Thread
Holding Type	Snap Lock
Length - Overall [x]	69.5 mm
Length - Overall [x]	2.736 in
Material	Nylon
Mounting Hole Diameter	0.125 in
Mounting Hole Diameter	0.125 in
Mounting Hole Diameter	3.18 mm
Mounting Type	Screw Mount
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Mounting Type	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Features	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter	Length - Overall [x]	Length - Overall [x]	Holding Type	Between Board Height	Between Board Height
Essentra Access Solutions TCBN-T1-M3-8-60	Screw Mount	Nylon	0.157 "	3.99 mm	1.6 mm	0.063 in	M3 Thread	0.125 in	0.125 in	3.18 mm	69.5 mm	2.736 in	Snap Lock	60 mm	2.362 in
Essentra Access Solutions TCBN-T1-M3-6-10	Screw Mount	Nylon	0.157 "	3.99 mm	1.6 mm	0.063 in	M3 Thread	0.125 in	0.125 in	3.18 mm	19.5 mm	0.768 "	Snap Lock	10 mm	0.394 in
Essentra Access Solutions TCBN-T1-M3-6-5	Screw Mount	Nylon	0.157 "	3.99 mm	1.6 mm	0.063 in	M3 Thread	0.125 in	0.125 in	3.18 mm	14.5 mm	0.571 in	Snap Lock	5 mm	0.197 in
Essentra Access Solutions TCBN-T1-M4-8-9	Screw Mount	Nylon	0.157 "	3.99 mm	1.6 mm	0.063 in	M4 Thread		4.8 mm	0.189 in	18.5 mm	0.728 in	Snap Lock	9 mm	0.354 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Board Support Snap Lock / Screw Mount Nylon 2.362" (60.00mm)

Technical documentation and resources

No documents available
