19365061441

Active

HARTING Technology Group

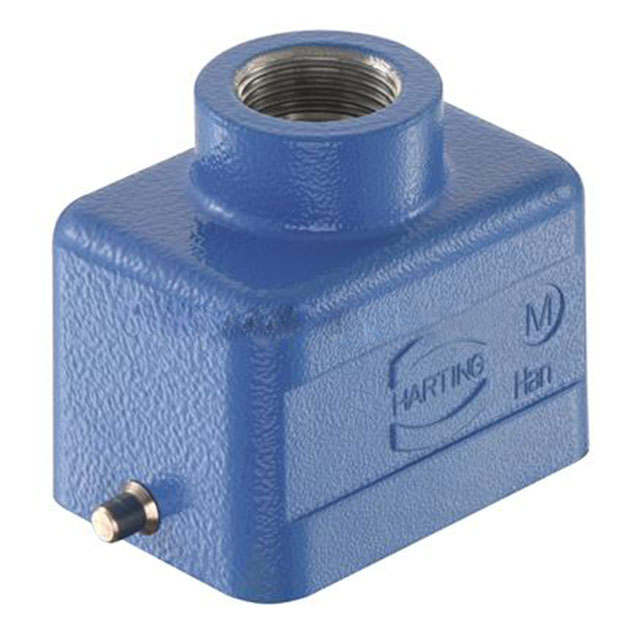

HEAVY DUTY CONNECTOR, M25, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER, 6B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M25, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER, 6B

Technical Specifications

Parameters and characteristics for this part

Specification	19365061441

Connector Type	Hood
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	6B
Style	Top Entry
Thread Size	M25

Part	Housing Material	Thread Size	Housing Color	Housing Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Size	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lock Location	Connector Type	Style
HARTING Technology Group 19365061540	Zinc Die Cast	M20	Blue	Powder Coated	-20 C	40 °C	IP65 - Dust Tight Water Resistant	6B	51 mm	2.008 in	1.693 in	2.362 in	43 mm	60 mm	Locking Clip (1) on Base Bottom	Hood	Side Entry
HARTING Technology Group 19365061541	Zinc Die Cast	M25	Blue	Powder Coated	-20 C	40 °C	IP65 - Dust Tight Water Resistant	6B	51 mm	2.008 in	1.693 in	2.362 in	43 mm	60 mm	Locking Clip (1) on Base Bottom	Hood	Side Entry
HARTING Technology Group 19365061440	Zinc Die Cast	M20	Blue	Powder Coated	-20 C	40 °C	IP65 - Dust Tight Water Resistant	6B							Locking Clip (1) on Base Bottom	Hood	Top Entry
HARTING Technology Group 19365061441	Zinc Die Cast	M25	Blue	Powder Coated	-20 C	40 °C	IP65 - Dust Tight Water Resistant	6B							Locking Clip (1) on Base Bottom	Hood	Top Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 6B IP65 - Dust Tight, Water Resistant
