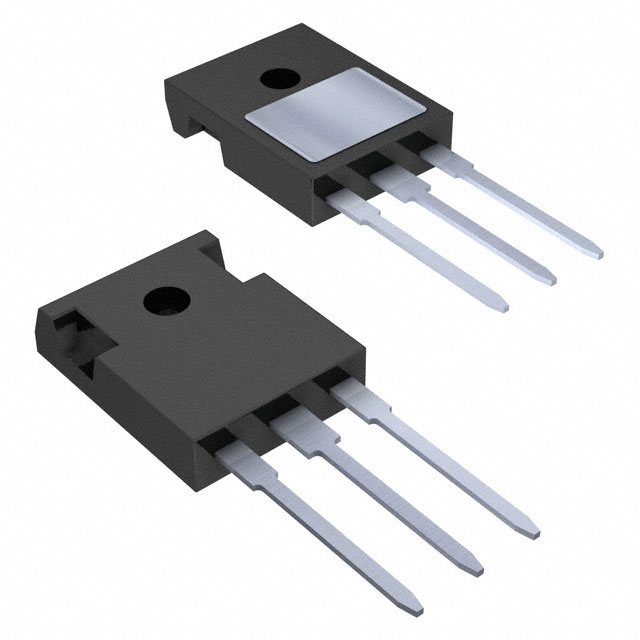

CLA80MT1200NHR

Active

IXYS

TRIAC 1.2KV 88A ISO247

Search across all available documentation for this part.

Active

IXYS

TRIAC 1.2KV 88A ISO247

Technical Specifications

Parameters and characteristics for this part

Specification	CLA80MT1200NHR

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	70 mA
Current - Hold (Ih) (Max) [Max]	70 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	520 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	480 A
Current - On State (It (RMS)) (Max)	88 A
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Supplier Device Package	ISO247
Triac Type	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.7 V
Voltage - Off State	1.2 kV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Mounting Type	Current - Hold (Ih) (Max) [Max]	Configuration	Package / Case	Voltage - Gate Trigger (Vgt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Off State	Triac Type	Current - On State (It (RMS)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]
IXYS CLA80MT1200NHR	480 A	520 A	Through Hole	70 mA	Single	TO-247-3	1.7 V	-55 °C	150 °C	ISO247	1.2 kV	Standard	88 A	70 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 9.05

General part information

TRIAC Standard 1.2 kV 88 A Through Hole ISO247
