LF10WBJ-12S

Active

Hirose Electric USA, Inc.

SHIELDED SMALL WATERPROOF CONNECTOR

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

SHIELDED SMALL WATERPROOF CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	LF10WBJ-12S

Applications	Telecommunications, Industrial
Backshell Material, Plating	Nickel, Zinc Alloy
Color	Brown, Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Clamp
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10
Shielding	Shielded
Voltage Rating	30 VAC, 42 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Material Flammability Rating	Insert Material	Applications	Shielding	Current Rating (Amps)	Connector Type	Orientation	Fastening Type	Features	Ingress Protection	Primary Material	Shell Size - Insert	Contact Material	Contact Finish - Mating	Shell Finish	Mounting Type	Backshell Material, Plating	Voltage Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color
Hirose Electric USA, Inc. LF10WBJ-12S	-25 °C	85 °C	Zinc Alloy	UL94 V-0	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Shielded	2 A	Female Sockets Jack	Keyed	Bayonet Lock	Backshell Clamp Strain Relief	IP67/IP68 - Dust Tight Waterproof	Metal	10	Phosphor Bronze	Gold	Nickel	Free Hanging (In-Line)	Nickel Zinc Alloy	30 VAC 42 VDC	12	0.203 Ám	8 Áin	Brown Silver
Hirose Electric USA, Inc. LF10WBJ-12P	-25 °C	85 °C	Zinc Alloy	UL94 V-0	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Shielded	2 A	Jack Male Pins	Keyed	Bayonet Lock	Backshell Clamp Strain Relief	IP67/IP68 - Dust Tight Waterproof	Metal	10	Copper Alloy	Gold	Nickel	Free Hanging (In-Line)	Nickel Zinc Alloy	30 VAC 42 VDC	12	0.203 Ám	8 Áin	Brown Silver
Hirose Electric USA, Inc. LF10WBJ-4S	-25 °C	85 °C	Zinc Alloy	UL94 V-0	Polyphenylene Sulfide (PPS)	Industrial Telecommunications	Shielded	10 A	Female Sockets Jack	Keyed	Bayonet Lock	Backshell Clamp Strain Relief	IP67/IP68 - Dust Tight Waterproof	Metal	10	Copper Alloy	Gold	Nickel	Free Hanging (In-Line)	Nickel Zinc Alloy	125 VAC	4	0.203 Ám	8 Áin	Brown Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

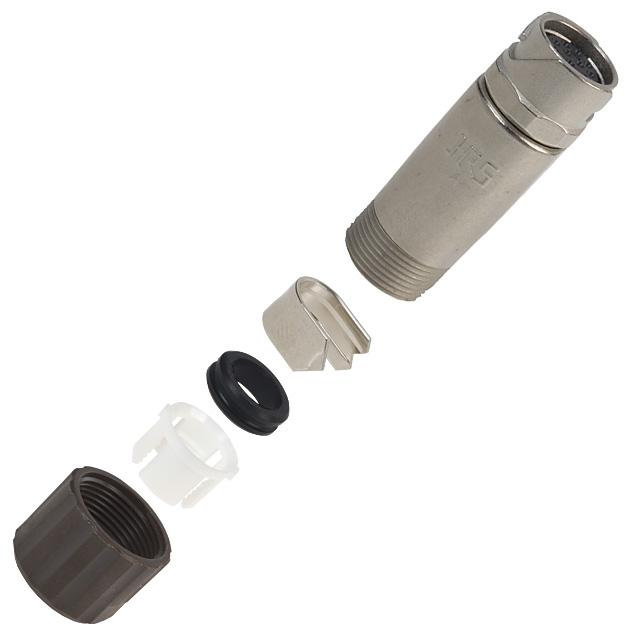

12 Position Circular Connector Jack, Female Sockets Solder Cup
