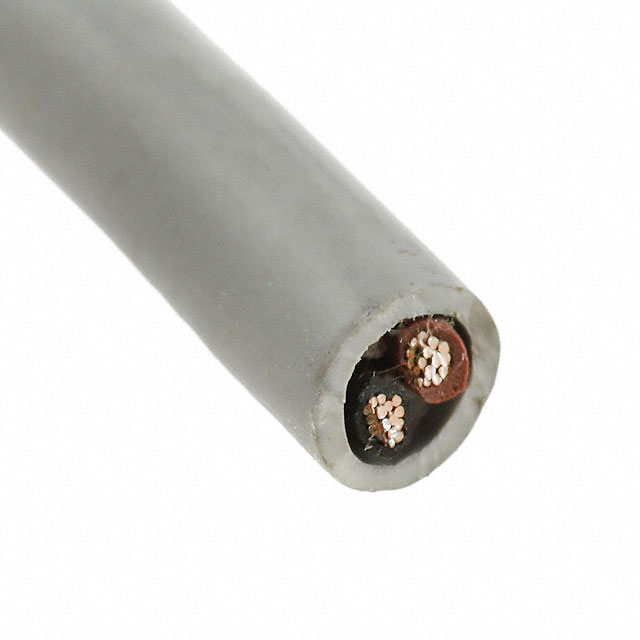

M4633 SL001

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 22AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M4633 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.34 mm
Jacket (Insulation) Diameter [diameter]	0.171 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Number of Conductors	Jacket Color	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Shield Material	Ratings	Wire Gauge	Jacket (Insulation) Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length	Length	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Voltage
ALPHA WIRE M4633 SL001	2	Slate	100 %	-20 C	80 C	Copper Tinned	Aluminum	UL Style 2464	22 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	4.34 mm	0.171 in	Multi-Conductor	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	28	7	Foil	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.45

General part information

2 Conductor Multi-Conductor Cable Slate 22 AWG Foil 1000.0' (304.8m)
