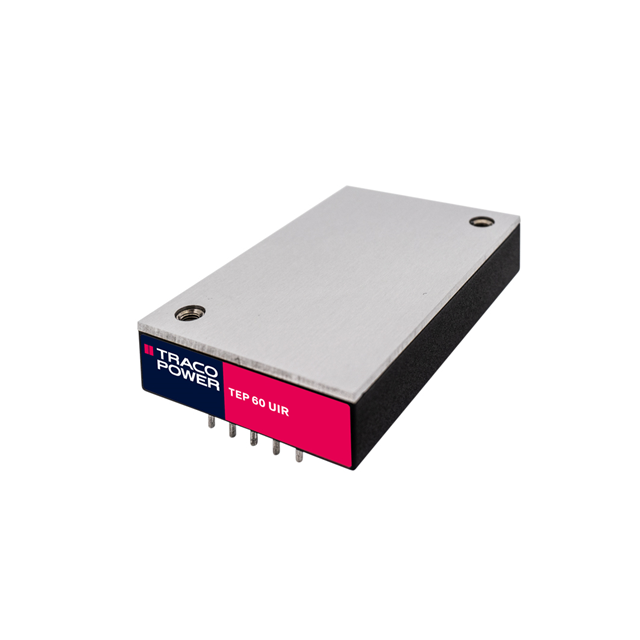

TEP 60-3612UIR
ActiveTraco Power
DC DC CONVERTER 12V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TEP 60-3612UIR
ActiveTraco Power
DC DC CONVERTER 12V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TEP 60-3612UIR |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 89 % |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 149.93 | |
| 10 | $ 137.80 | |||
| 25 | $ 133.25 | |||
| 50 | $ 129.91 | |||
| 100 | $ 114.84 | |||
Description
General part information
TEP 60 Series
Isolated Module DC DC Converter 1 Output 12V 5A 9V - 75V Input
