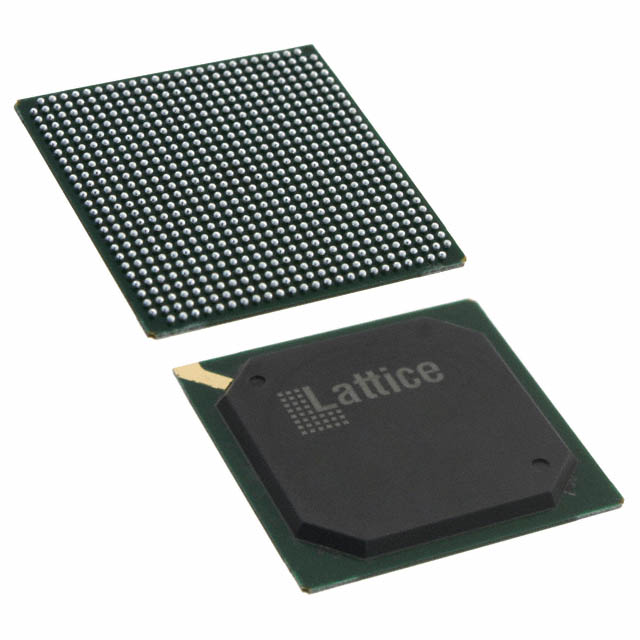

LFE2M35E-6FN672I

Active

LATTICE SEMICONDUCTOR

FPGA LATTICEECP2M FAMILY 34000 CELLS 90NM TECHNOLOGY 1.2V 672-PIN FBGA TRAY

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

FPGA LATTICEECP2M FAMILY 34000 CELLS 90NM TECHNOLOGY 1.2V 672-PIN FBGA TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	LFE2M35E-6FN672I

Mounting Type	Surface Mount
Number of I/O	410
Number of LABs/CLBs	4250
Number of Logic Elements/Cells	34000
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	672-BBGA
Supplier Device Package	672-FPBGA (27x27)
Total RAM Bits	2151424 Bits

Part	Package / Case	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Total RAM Bits	Number of I/O	Mounting Type	Number of LABs/CLBs
LATTICE SEMICONDUCTOR LFE2M35E-6F256C	256-BGA	256-FPBGA (17x17)	0 °C	85 °C	34000	2151424 Bits	140	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35SE-6F484I	484-BBGA	484-FPBGA (23x23)	-40 C	100 °C	34000	2151424 Bits	303	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35E-6FN256C	256-BGA	256-FPBGA (17x17)	0 °C	85 °C	34000	2151424 Bits	140	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35E-6FN672I	672-BBGA	672-FPBGA (27x27)	-40 C	100 °C	34000	2151424 Bits	410	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35E-6FN484C	484-BBGA	484-FPBGA (23x23)	0 °C	85 °C	34000	2151424 Bits	303	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35E-6F256I	256-BGA	256-FPBGA (17x17)	-40 C	100 °C	34000	2151424 Bits	140	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35SE-7F672C	672-BBGA	672-FPBGA (27x27)	0 °C	85 °C	34000	2151424 Bits	410	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35E-7F672C	672-BBGA	672-FPBGA (27x27)	0 °C	85 °C	34000	2151424 Bits	410	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35SE-6F672C	672-BBGA	672-FPBGA (27x27)	0 °C	85 °C	34000	2151424 Bits	410	Surface Mount	4250
LATTICE SEMICONDUCTOR LFE2M35E-5F672I	672-BBGA	672-FPBGA (27x27)	-40 C	100 °C	34000	2151424 Bits	410	Surface Mount	4250

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ECP2M Field Programmable Gate Array (FPGA) IC 410 2151424 34000 672-BBGA
