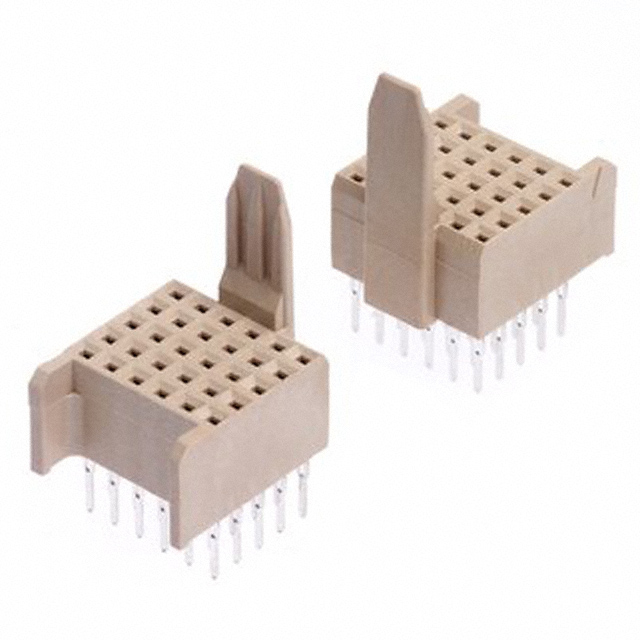

MP2-R210-51S1-KR

Active

3M (TC)

CONN HARD METRIC F 210 POS 2MM SOLDER ST THRU-HOLE BOX

Search across all available documentation for this part.

Active

3M (TC)

CONN HARD METRIC F 210 POS 2MM SOLDER ST THRU-HOLE BOX

Technical Specifications

Parameters and characteristics for this part

Specification	MP2-R210-51S1-KR

Color	Beige
Connector Style	Futurebus+®
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	1.5 A
Features	Inverse
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	210
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

Part	Contact Finish	Mounting Type	Termination	Current Rating (Amps)	Connector Usage	Connector Style	Material Flammability Rating	Color	Number of Rows	Number of Positions Loaded	Number of Positions	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features
3M (TC) MP2-R210-51S1-KR	Gold	Through Hole	Solder	1.5 A	Backplane	Futurebus+®	UL94 V-0	Beige	5	All	210	0.079 in	2 mm	-55 °C	125 °C	0.76 Ám	30 Áin	Receptacle Female Sockets	Inverse
3M (TC) MP2-R210-51S1-TR30	Gold	Through Hole	Solder	1.5 A	Backplane	Futurebus+®	UL94 V-0	Beige	5	All	210	0.079 in	2 mm	-55 °C	125 °C	0.076 Ám	3 Áin	Receptacle Female Sockets	Inverse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	336	$ 37.82

General part information

210 Connector Receptacle, Female Sockets Through Hole Beige Futurebus+®
