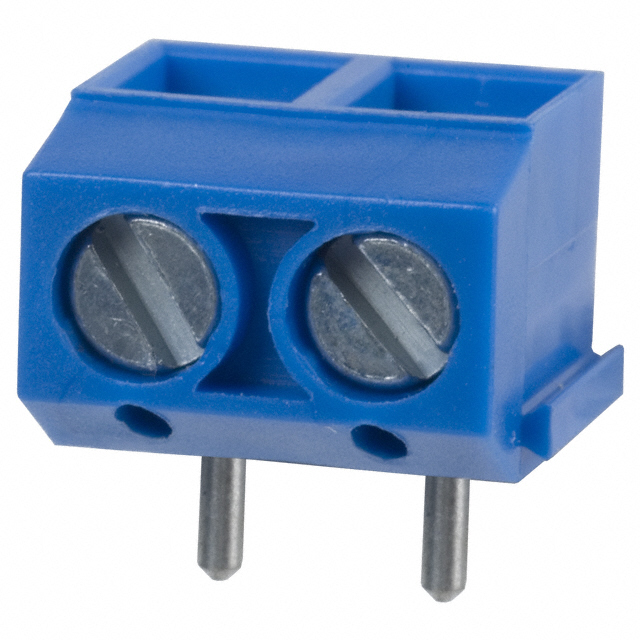

ED505/2DS

Active

On Shore Technology Inc.

TERM BLK 2POS TOP ENTRY 5MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 2POS TOP ENTRY 5MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED505/2DS

Clamp Material - Plating	Stainless, Steel
Color	Blue
Contact Material - Plating [custom]	Brass
Current	15 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Screw Thread	M2.6
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

Part	Housing Material	Wire Termination	Clamp Material - Plating	Screw Thread	Current	Number of Levels	Contact Material - Plating [custom]	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Mating Orientation	Positions Per Level	Torque - Screw	Torque - Screw	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Color	Pitch [x]	Pitch [x]
On Shore Technology Inc. ED505/2DS	Polyamide (PA) Nylon	Screw - Leaf Spring Wire Guard	Stainless Steel	M2.6	15 A	1	Brass	Interlocking (Side)	Through Hole	-30 ░C	105 ░C	Vertical with Board	2	0.4 Nm	3.5 Lb-In	300 V	14 AWG	22 AWG	Blue	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
