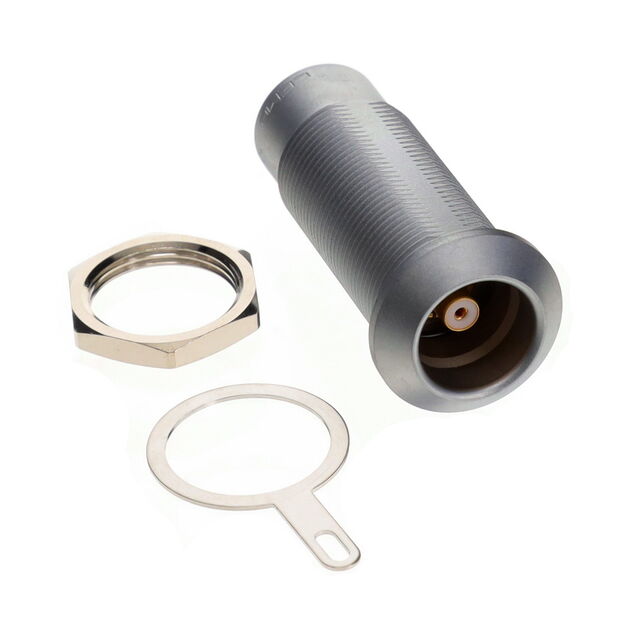

SWH.1E.650.CTMPV

Active

LEMO

CONN ADAPT JACK-JACK NIM-CAMAC

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT JACK-JACK NIM-CAMAC

Technical Specifications

Parameters and characteristics for this part

Specification	SWH.1E.650.CTMPV

Adapter Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549
Adapter Type	Jack to Jack
Body Finish	Chrome
Body Material	Brass
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Triaxial Jack, Female Socket
Convert To (Adapter End)	NIM-CAMAC CD/N 549 Triaxial Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Impedance	50 Ohms
Includes	1 Nut, 1 Connector
Ingress Protection	IP68 - Dust Tight, Waterproof
Mating Cycles	5000
Mounting Feature	Bulkhead
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Style	Straight

Part	Body Material	Ingress Protection	Mating Cycles	Conversion Type	Includes	Style	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Series	Impedance	Convert From (Adapter End)	Dielectric Material	Convert To (Adapter End)	Body Finish	Adapter Type	Center Gender	Mounting Feature	Fastening Type
LEMO SWH.1E.650.CTMPV	Brass	IP68 - Dust Tight Waterproof	5000	Same Series	1 Connector 1 Nut	Straight	100 °C	-20 C	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	50 Ohms	NIM-CAMAC CD/N 549 Triaxial Jack Female Socket	Polytetrafluoroethylene (PTFE)	NIM-CAMAC CD/N 549 Triaxial Jack Female Socket	Chrome	Jack to Jack	Female to Female	Bulkhead	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Triaxial Jack, Female Socket To NIM-CAMAC CD/N 549 Triaxial Jack, Female Socket 50 Ohms
