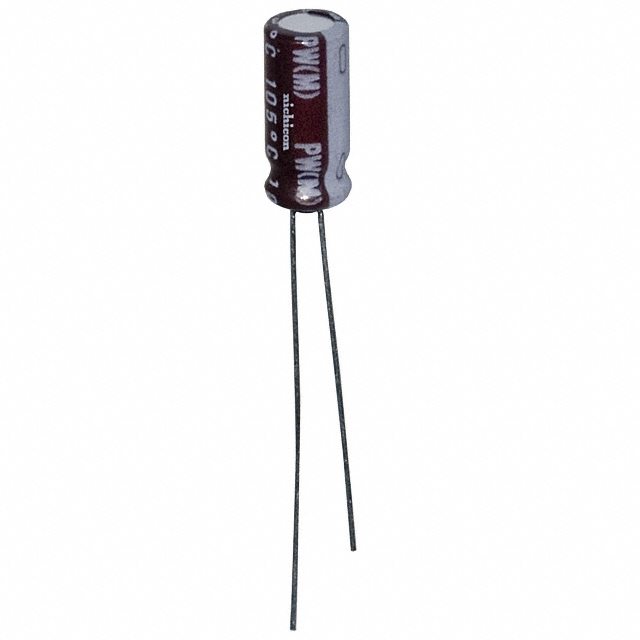

UPW1E270MDD

Obsolete

NICHICON

CAPACITOR: ELECTROLYTIC; LOW ESR; THT; 27UF; 25VDC; Ø4X11MM; ±20%

Search across all available documentation for this part.

Obsolete

NICHICON

CAPACITOR: ELECTROLYTIC; LOW ESR; THT; 27UF; 25VDC; Ø4X11MM; ±20%

Technical Specifications

Parameters and characteristics for this part

Specification	UPW1E270MDD

Applications	General Purpose
Capacitance	27 µF
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Impedance	1.3 Ohms
Lead Spacing	0.059 in
Lead Spacing	1.5 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ Low Frequency	36 mA
Size / Dimension [diameter]	4 mm
Size / Dimension [diameter]	0.157 in
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Mounting Type	Voltage - Rated	Capacitance	Polarization	Ripple Current @ Low Frequency	Impedance	Ripple Current @ High Frequency	Package / Case	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing
NICHICON UPW1A272MHD	AEC-Q200	0.492 in	12.5 mm	20 %	105 ░C	-55 °C	7000 Hrs	Through Hole	10 V	2700 µF	Polar	1.653 A	30 mOhms	1.945 A	Radial Can	General Purpose	0.984 "	25 mm	5 mm	0.197 in
NICHICON UPW1A332MHD	AEC-Q200	0.492 in	12.5 mm	20 %	105 ░C	-55 °C	7000 Hrs	Through Hole	10 V	3.3 mF	Polar	1.658 A	30 mOhms	1.95 A	Radial Can	General Purpose	0.984 "	25 mm	5 mm	0.197 in
NICHICON UPW1E270MDD		0.157 in	4 mm	20 %	105 ░C	-55 °C	2000 Hrs	Through Hole	25 VDC	27 µF	Polar	36 mA	1.3 Ohms		Radial Can	General Purpose	0.433 in	11 mm	1.5 mm	0.059 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TME	N/A	400	$ 0.07

General part information

27 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
